Advanced Automated Board Glue Spreading System for Cost Efficiency

1 / 5

Advanced Automated Board Glue Spreading System for Cost Efficiency

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊Basic Information

Model NO.

XLD-CPL001

Glue Type

PUR, Solvent, Water-based

Machine Type

Automatic Composite Line

Voltage

380V 3phase 50Hz

Warranty

1 Year

Coating

Powder Coating

Certification

ISO

Power

10kw

Rhythm

30s / PCS

Flow Accuracy

≤ ± 3%

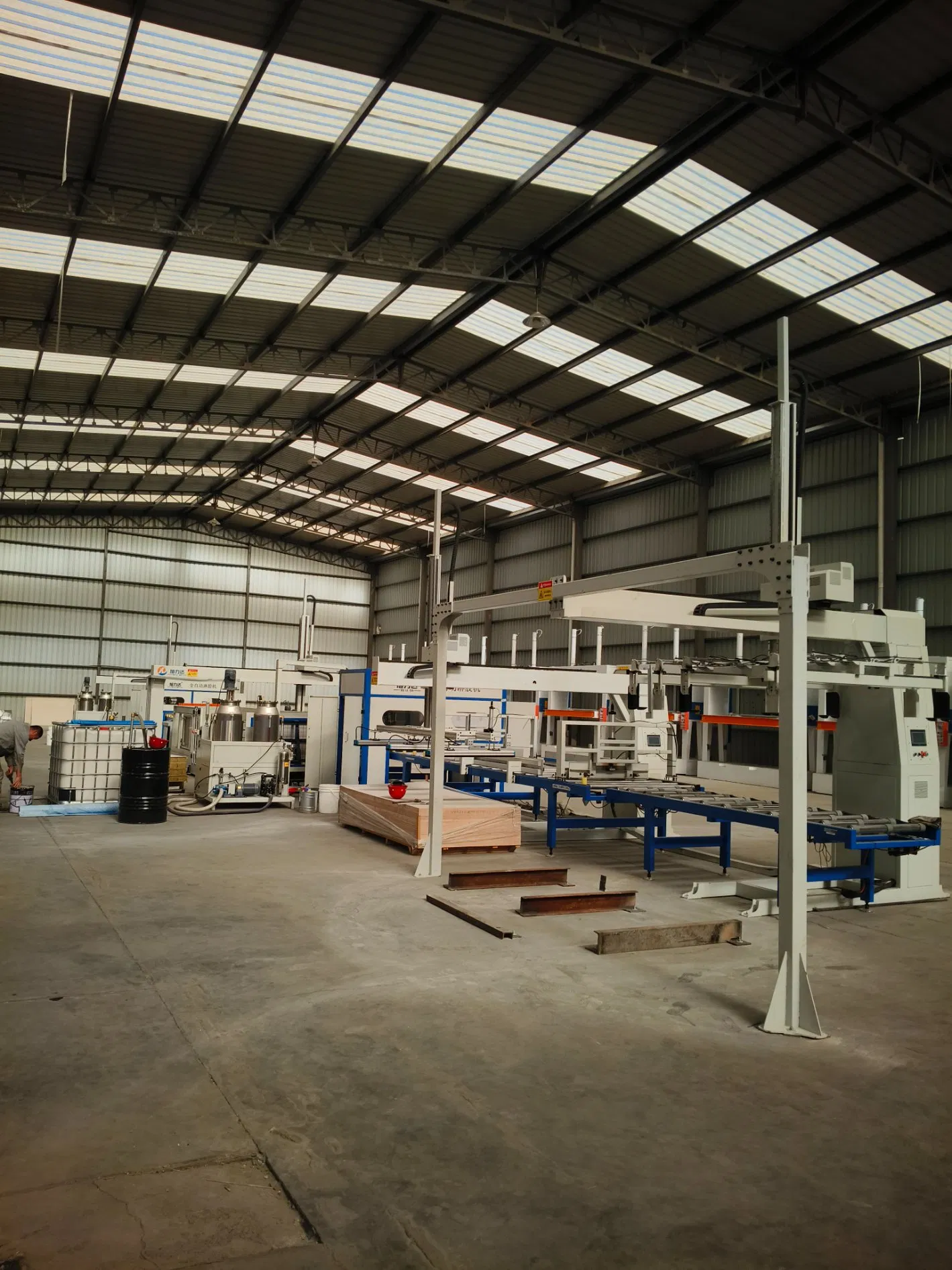

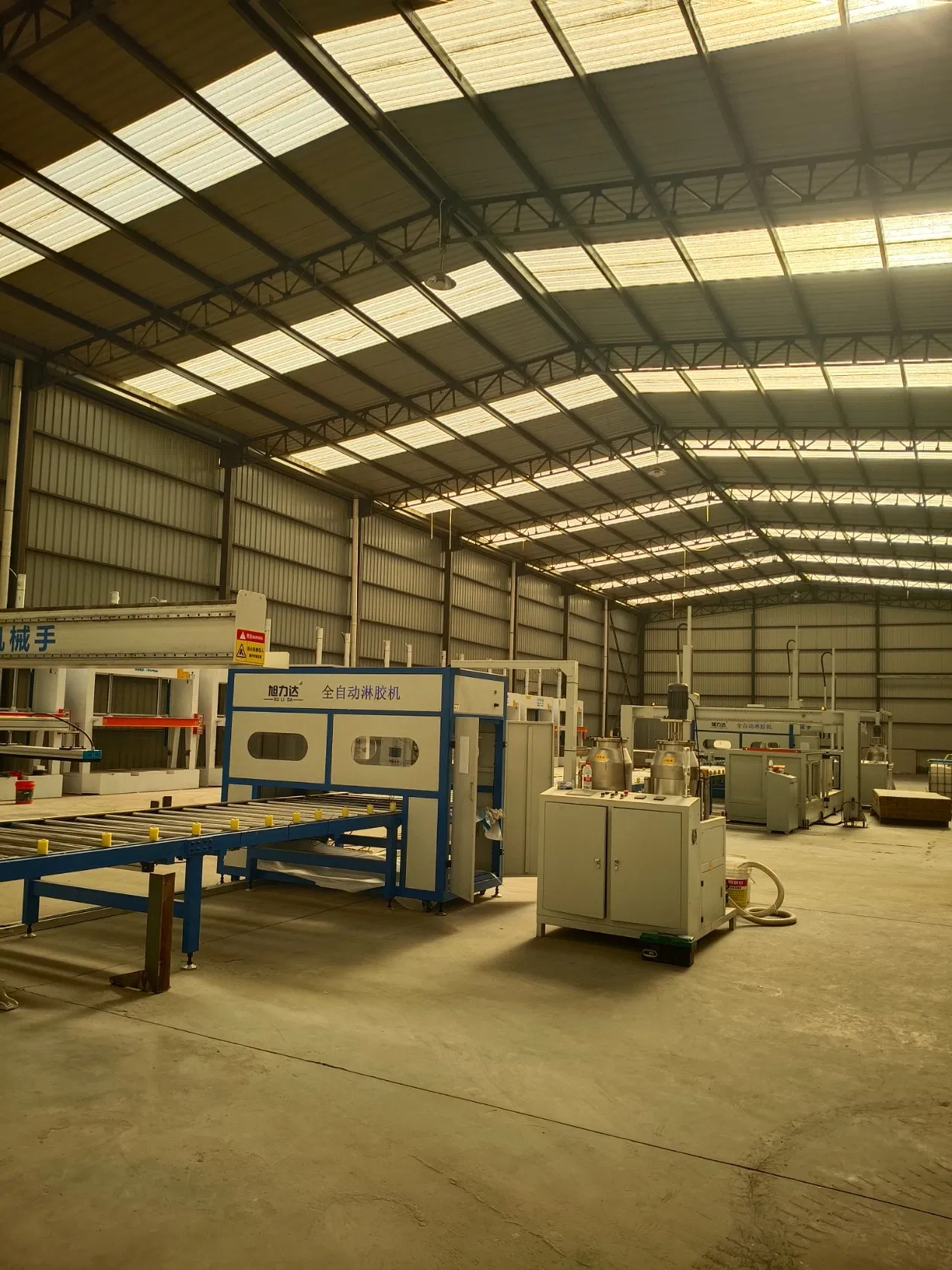

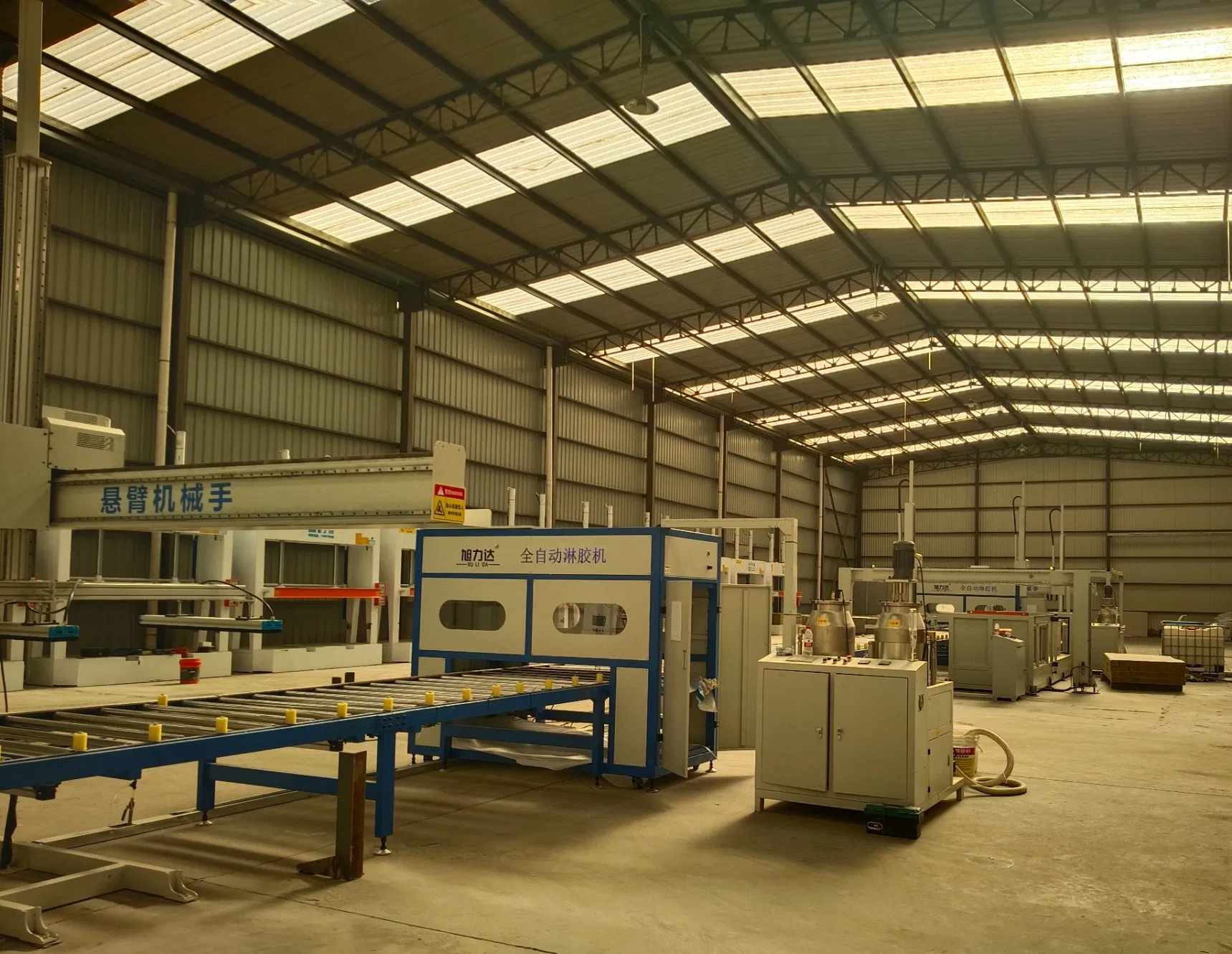

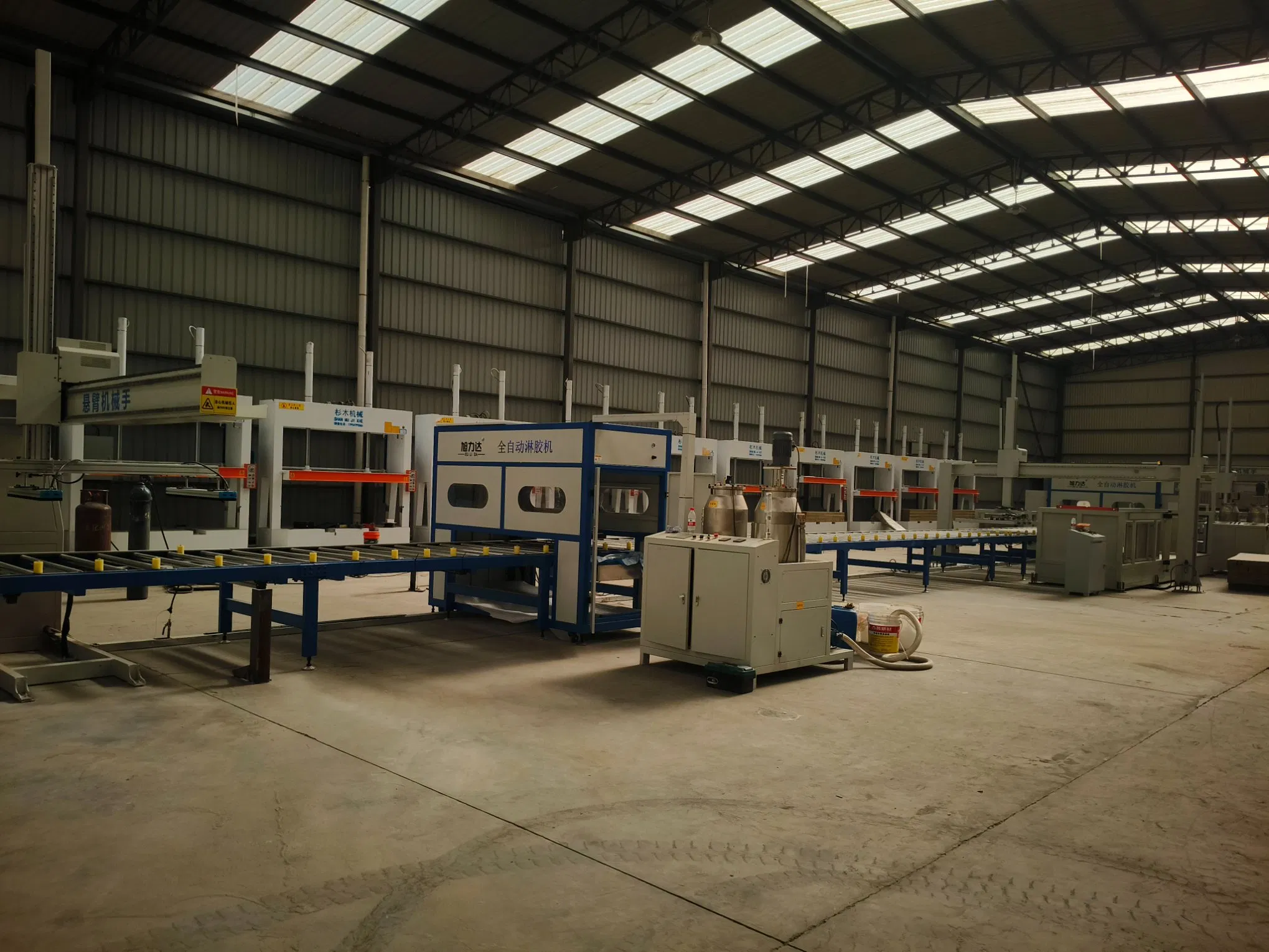

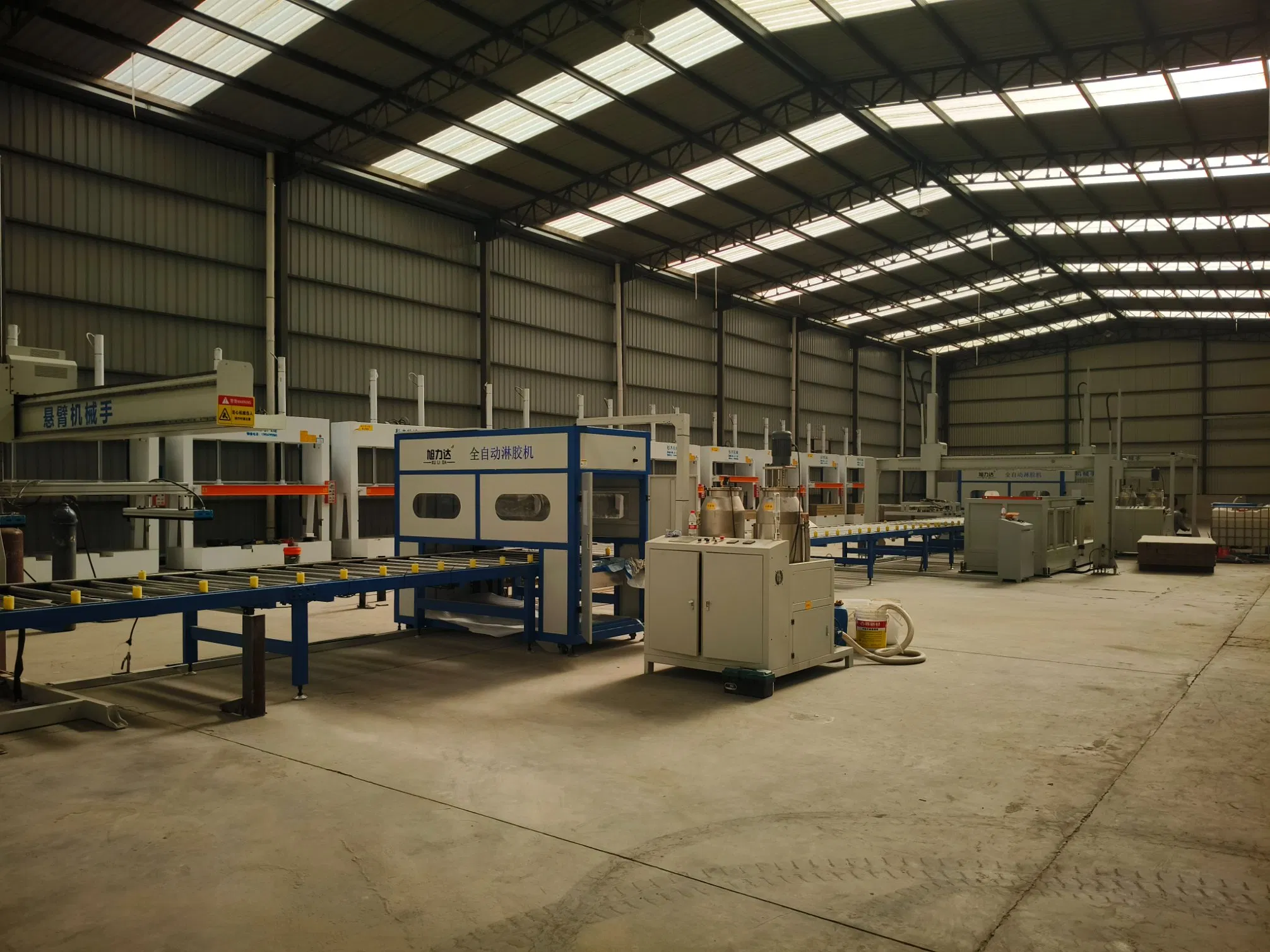

🚀Fully Automatic Integrated Board Glue Spreading Line

Key Advantages

✔ Cost Control: Set precise glue amounts freely, reducing waste compared to manual scraping.

✔ Efficiency: Produces 3,600 sqm/10h with only 3 operators.

✔ Labor Saving: Replaces traditional processes requiring 10+ workers.

✔ Quality Control: Standardized application ensures uniform glue distribution.

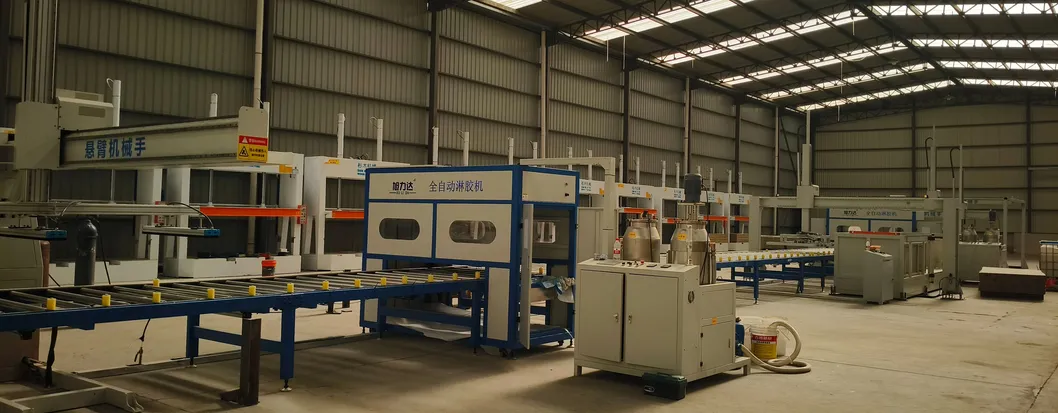

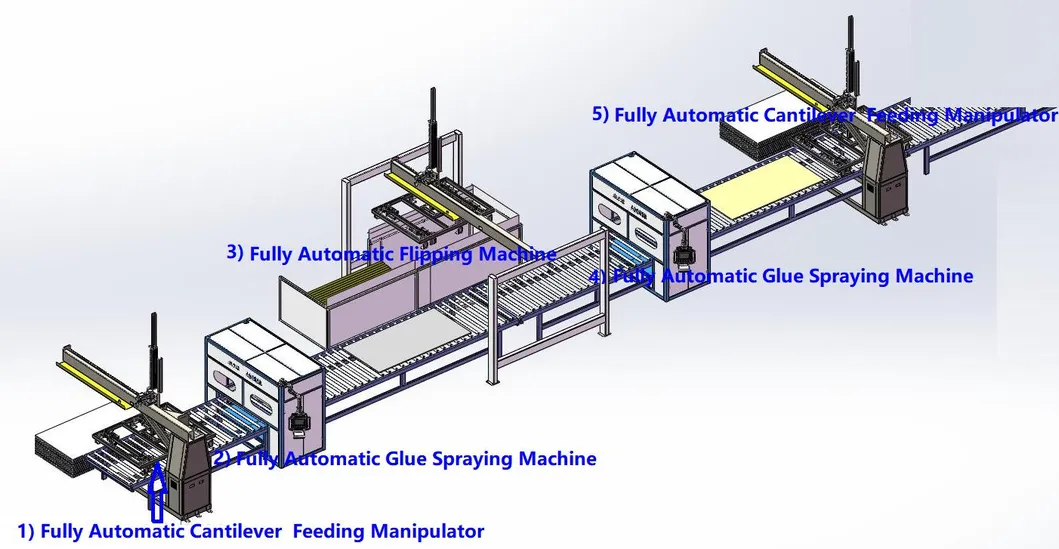

⚙️Production Process

1) Automatic cantilever loading and glue spraying.
2) Automatic rock wool compounding (1220*2440mm), followed by secondary gluing and panel lamination.

📋Technical Parameters

Parameter	Specification	Parameter	Specification
Equipment Model	1300 / 1600 / 2000	Power Supply	380V 50Hz
Glue Output	0-6000g/min	Air Source	0.6 - 0.8Mpa
Equipment Size	30m * 3.5m * 2.5m	Proportioning Ratio	1:1 to 5:1 (Adjustable)
Conveying Speed	Up to 12m/min	Flow Accuracy	≤ ± 3%

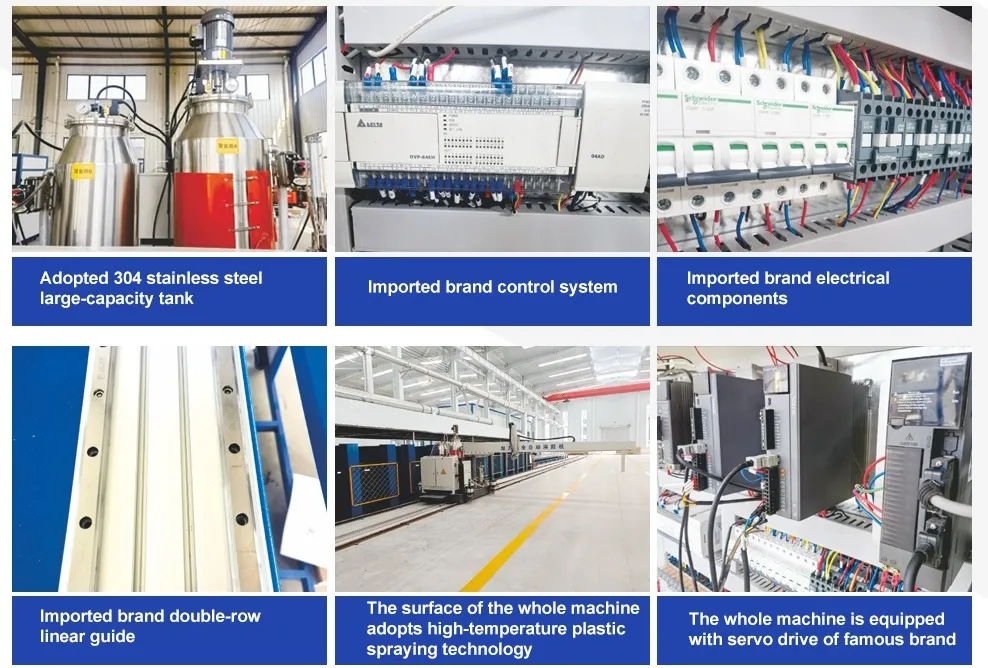

💎Equipment Functions & Features

🔹 High-temperature powder coated frame for durability.

🔹 Stainless steel rollers to prevent rust.

🔹 Aviation-grade aluminum coating head with anti-stick surface.

🔹 Dual hydraulic sensors for blockage and pressure protection.

🔹 Servo motor-driven precision metering pumps.

🔹 Digital glue mixing system via full touchscreen interface.

🔹 Anti-deviation conveyor structure for precise positioning.

🔹 Remote troubleshooting capabilities via central controller.

🏗️Applicable Industries

Suitable for: Refrigerated Carriage Panels, Integrated Insulation Panels, Composite Board, Sandwich Board, Honeycomb Panels, Manual Purification Panels, Fireproof Panels, and more.

❓Frequently Asked Questions

Q1: What are the terms of packing for the equipment?

A: Generally, we pack the goods in containers using Standard Export Packages (Plywood boxes). Special requirements can be accommodated upon request.

Q2: What are the typical payment terms?

A: We require T/T 30% as a deposit and the remaining 70% before delivery. Photos of products and packages are provided before final payment.

Q3: How long is the expected delivery time?

A: Generally, it takes 30 to 45 days after receiving your advance payment, depending on the specific items and order quantity.

Q4: Can you produce machines according to specific samples or drawings?

A: Yes, we can produce based on your technical drawings or samples, including building specific molds and fixtures as needed.

Q5: Is every machine tested before it is shipped?

A: Yes, we conduct a 100% functional test on all goods before delivery to ensure quality and stability.

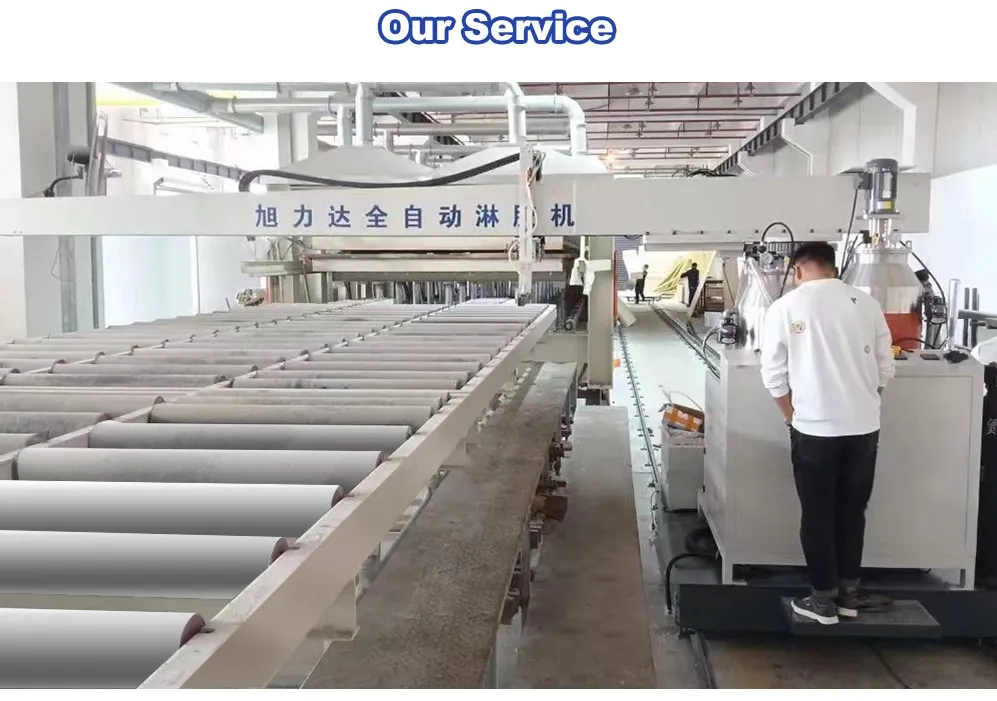

Q6: How do you support customers after the sale?

A: We provide professional online services with replies within 24 hours. Our equipment also features remote troubleshooting via a network central controller.
