Product Description

i

Basic Specifications

Surface Finishing Finished
Glass Type Tempered Glass
Certification RoHS, ISO
Open Style Folding
Position Commercial
Material Stainless Steel
Loading Weight 90kgs
Glass Thickness 8/10/12mm
Finish 1 Stain Stainless Steel
Finish 2 Matt Black
Capacity 50,000 units
Package Box Packing

Product Description

Frameless glass walls, frameless folding glass wall and door system

Frameless Folding Glass Walls offer outstanding aesthetics from any angle. With its versatile head track, panels easily fold and stack perpendicular to the opening, providing total design freedom by mixing and matching with single track sliding and center pivot systems.

Key Features: Frameless glass wall systems offer design solutions for exquisite interior and exterior windbreak applications.
  • Narrow, continuous, horizontal rails create a beautiful aesthetic.
  • Panels are available up to 1200 mm (4') wide and 3200 mm (10' 6") tall.
  • Extended opening widths possible with unhinged paired panels.
  • Swing door panels help with efficient traffic flow.
  • Intelligent rollers and guide technology aid in long-term ease of operation.

Smooth and Quiet Operation: The rollers are designed using hardened steel ball bearings with glass fiber reinforced polyamide wheels with memory effect. Polyamide bumpers are added to each end of the roller to avoid metal-to-metal contact inside the track.

Added Security: As a standard security measure, two hidden set screws per hinge are accessible only when the unit is in the open position. For projects requiring higher security or acoustical barriers, laminated glass can be configured.

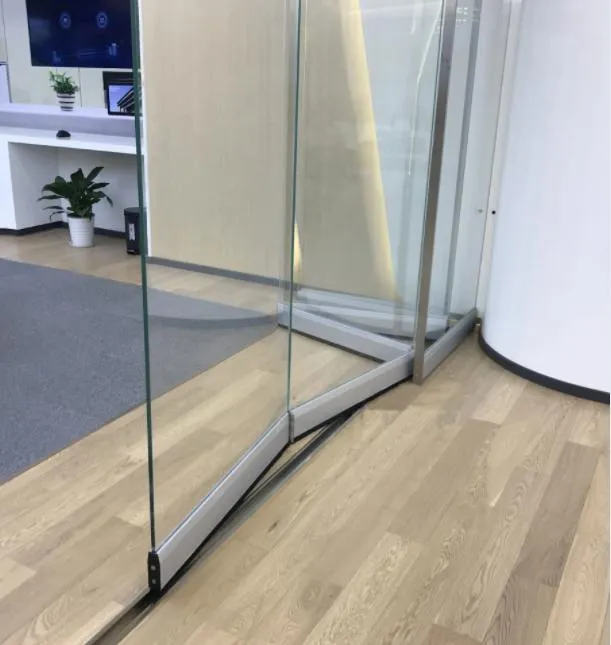

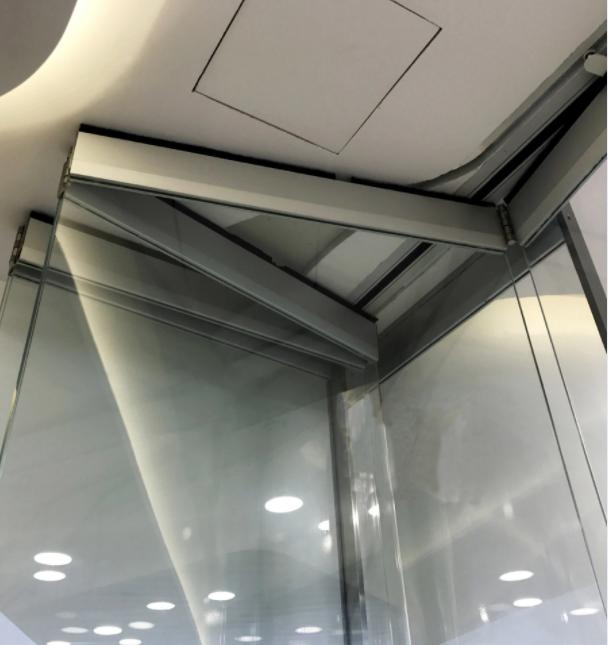

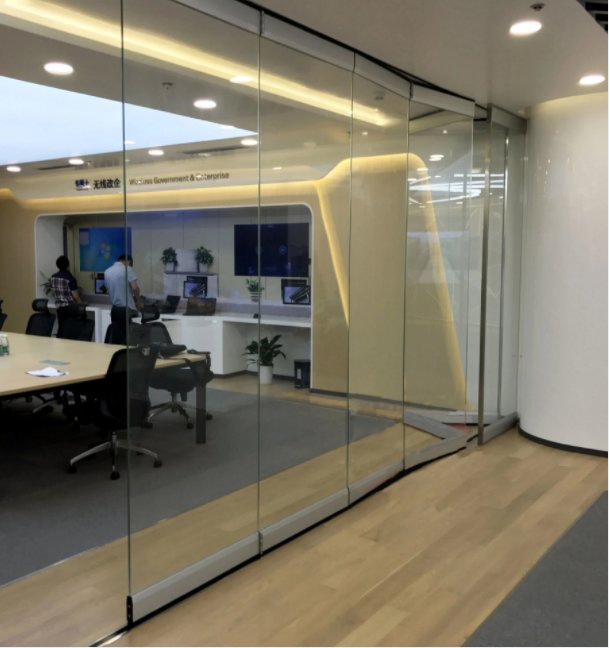

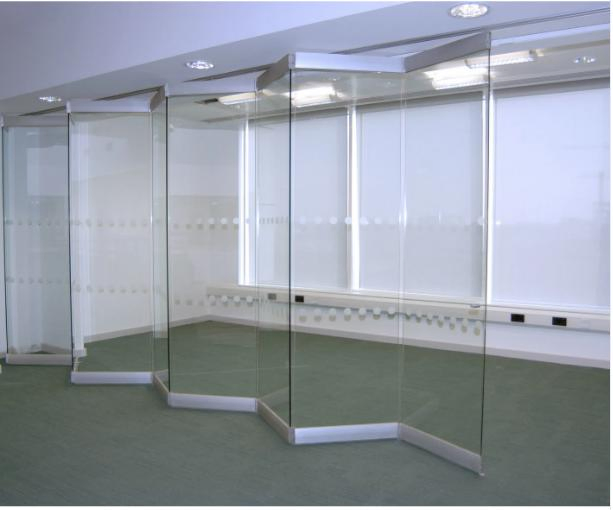

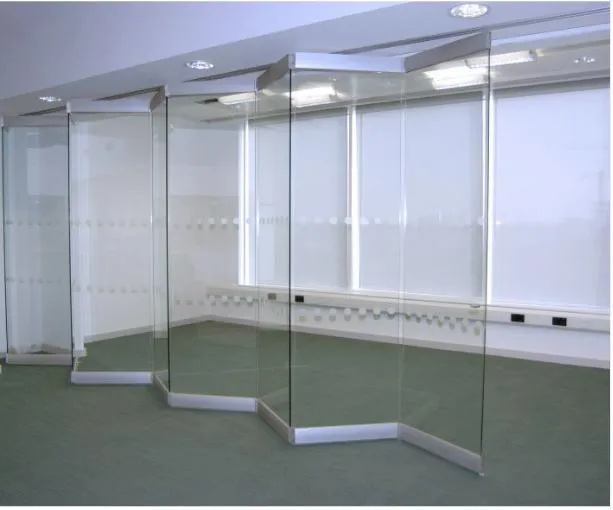

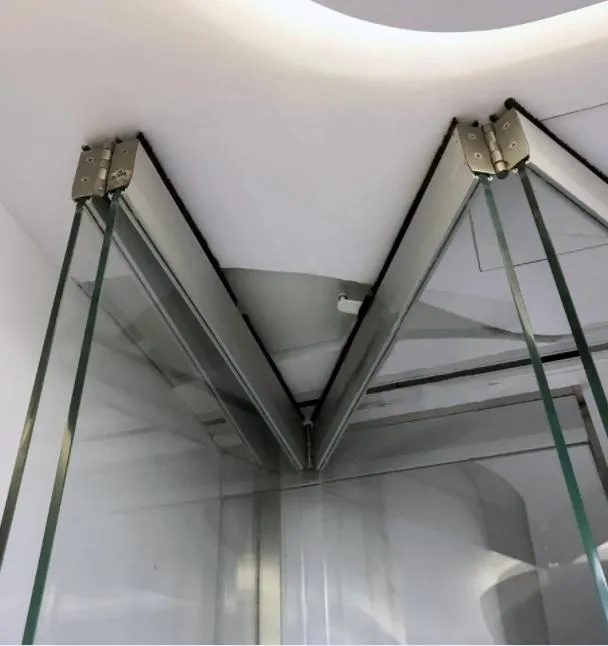

Product Showcase

?

Frequently Asked Questions

What glass thicknesses are supported by this system?
The system is compatible with tempered glass in thicknesses of 8mm, 10mm, and 12mm.
What is the maximum weight each panel can handle?
The system is designed to support a loading weight of up to 90kgs per panel.
Can the panels be customized for very tall openings?
Yes, unit heights are possible up to 3200 mm (approximately 10' 6"), allowing for large architectural openings.
How does the system ensure quiet operation?
We use intelligent rollers with hardened steel ball bearings and glass fiber reinforced polyamide wheels to ensure smooth, quiet movement without metal-on-metal contact.
Is the system secure against tampering?
Yes, security features include hidden set screws on hinges that are only accessible when the unit is open, and options for laminated glass for enhanced protection.
What finishes are available for the hardware?
Standard hardware finishes include Stain Stainless Steel and Matt Black to suit various commercial aesthetics.
