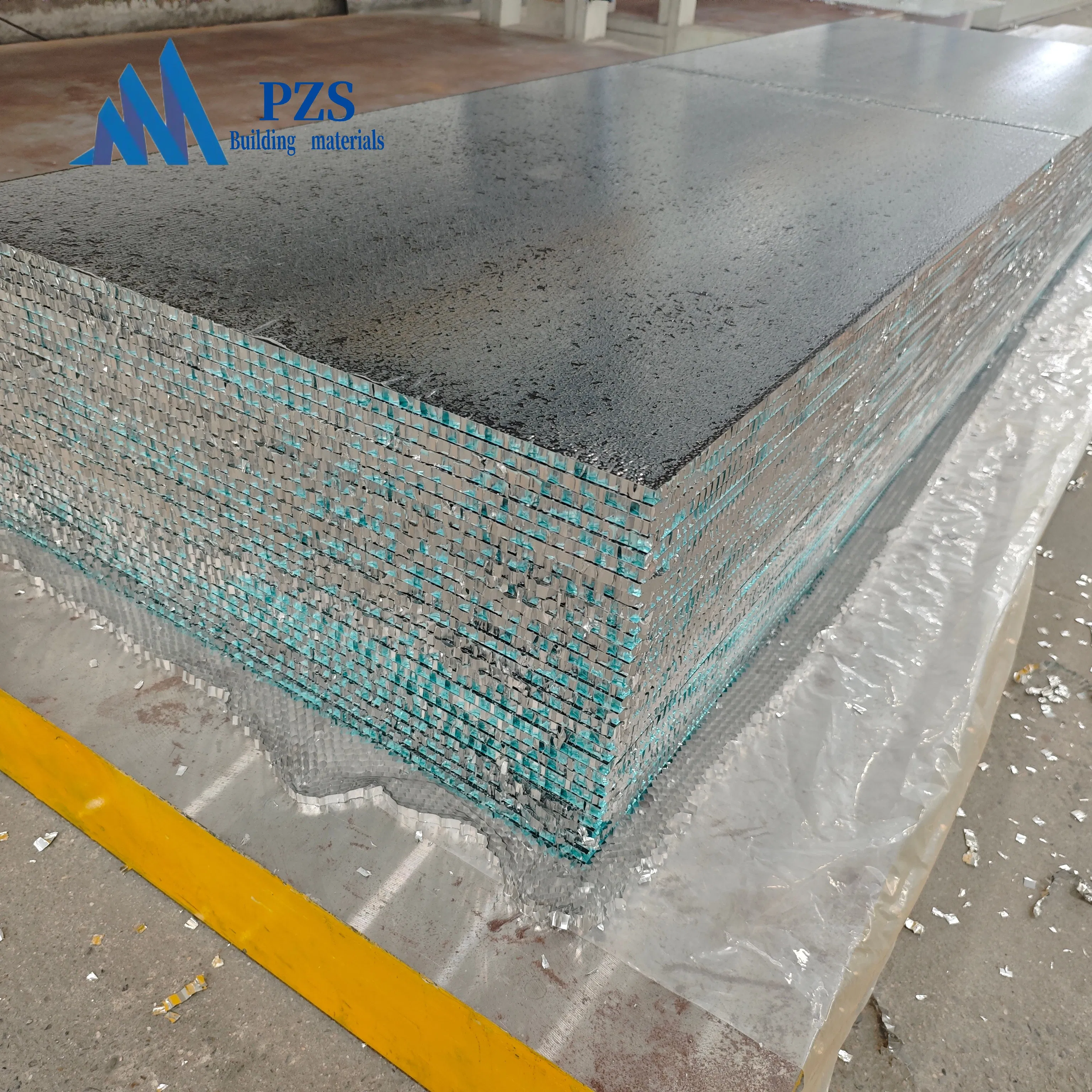

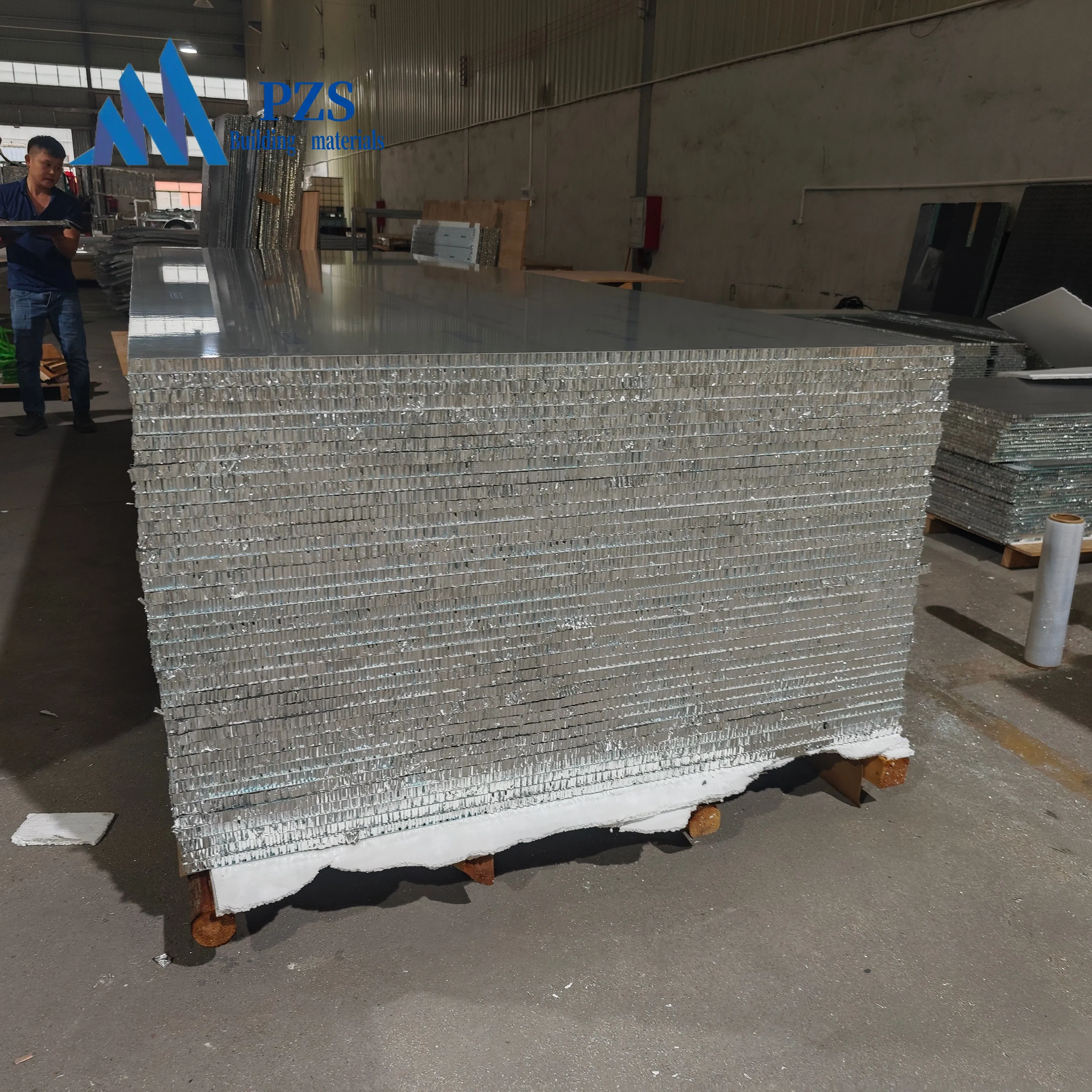

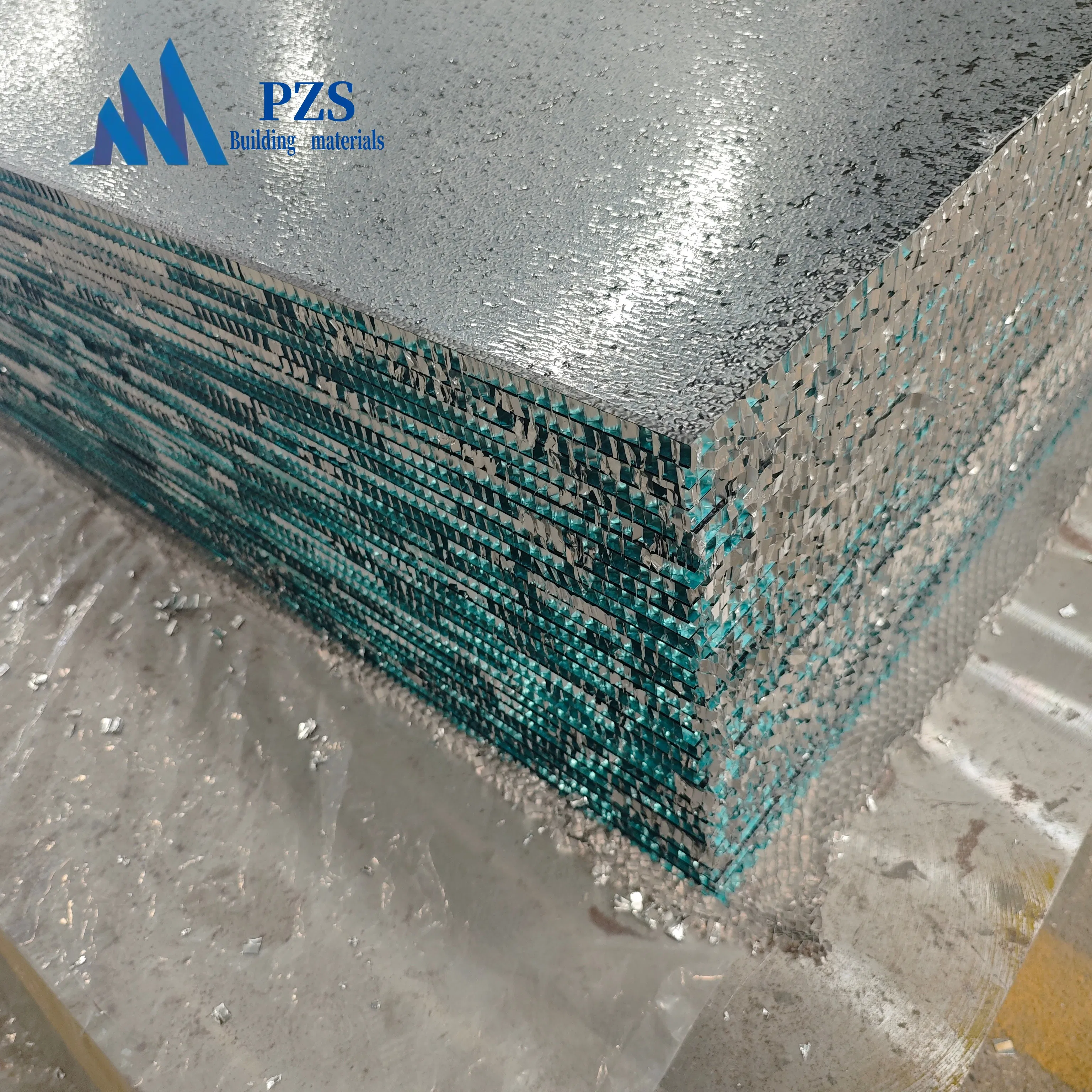

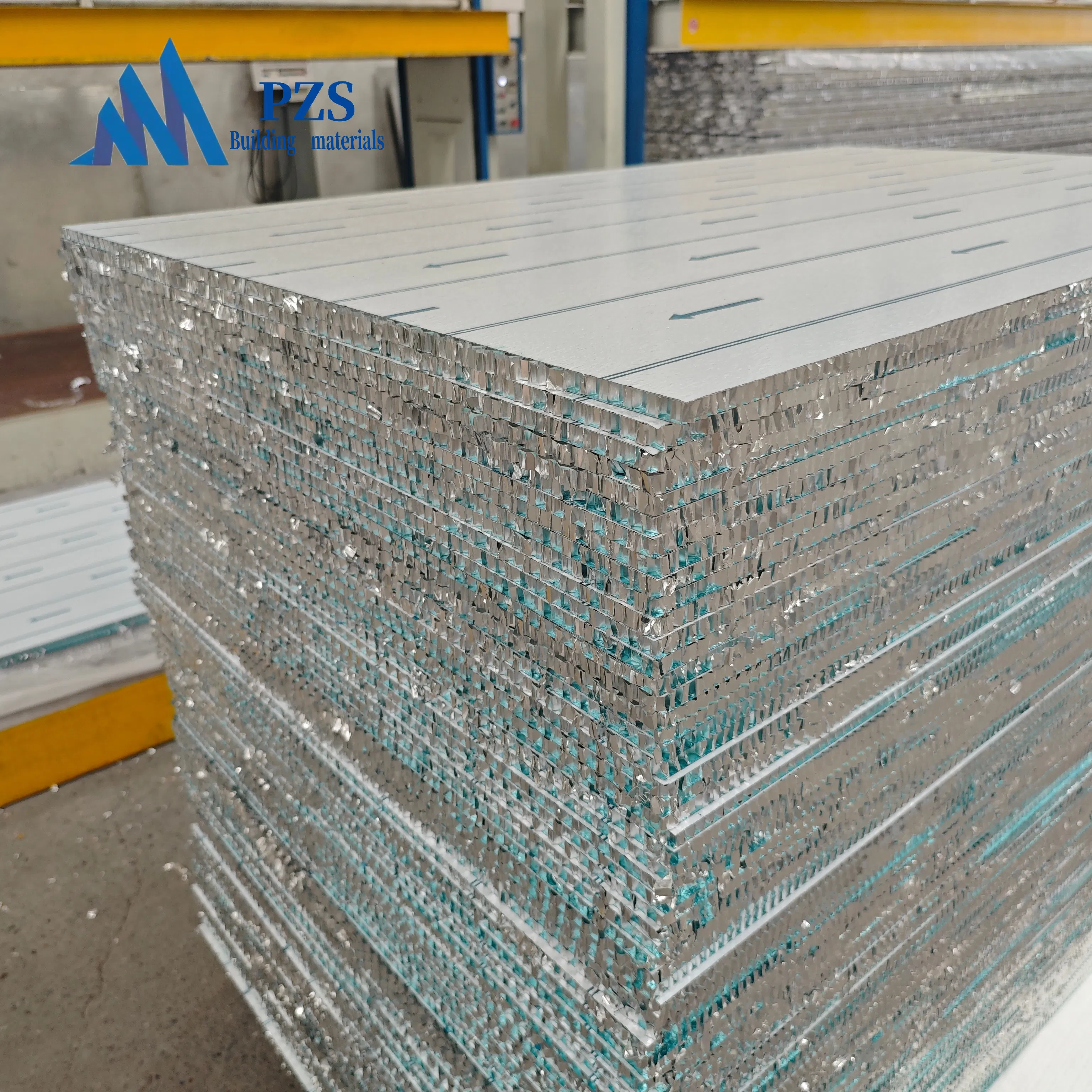

New Exterior Building Materials, Aluminum Honeycomb Panels for Building Exterior Walls with Temperature Tolerance
New Exterior Building Materials, Aluminum Honeycomb Panels for Building Exterior Walls with Temperature Tolerance
New Exterior Building Materials, Aluminum Honeycomb Panels for Building Exterior Walls with Temperature Tolerance
New Exterior Building Materials, Aluminum Honeycomb Panels for Building Exterior Walls with Temperature Tolerance
New Exterior Building Materials, Aluminum Honeycomb Panels for Building Exterior Walls with Temperature Tolerance
1 / 5
New Exterior Building Materials, Aluminum Honeycomb Panels for Building Exterior Walls with Temperature Tolerance
New Exterior Building Materials, Aluminum Honeycomb Panels for Building Exterior Walls with Temperature Tolerance
New Exterior Building Materials, Aluminum Honeycomb Panels for Building Exterior Walls with Temperature Tolerance
New Exterior Building Materials, Aluminum Honeycomb Panels for Building Exterior Walls with Temperature Tolerance
New Exterior Building Materials, Aluminum Honeycomb Panels for Building Exterior Walls with Temperature Tolerance

New Exterior Building Materials, Aluminum Honeycomb Panels for Building Exterior Walls with Temperature Tolerance

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Product Information
Model NO.LFW-01
MaterialAluminum Alloy
PerformanceHigh Intensity
FunctionExterior Walls, Ceilings, Partitions, Ships
Fire LevelClass A
ApplicationArchitecture, Marine, Hygienic Spaces
Thickness5mm~30mm (Customizable)
Life Cycle30 Years+
Sound InsulationRW 25 dB
HS Code76109000
🚀 Product Description

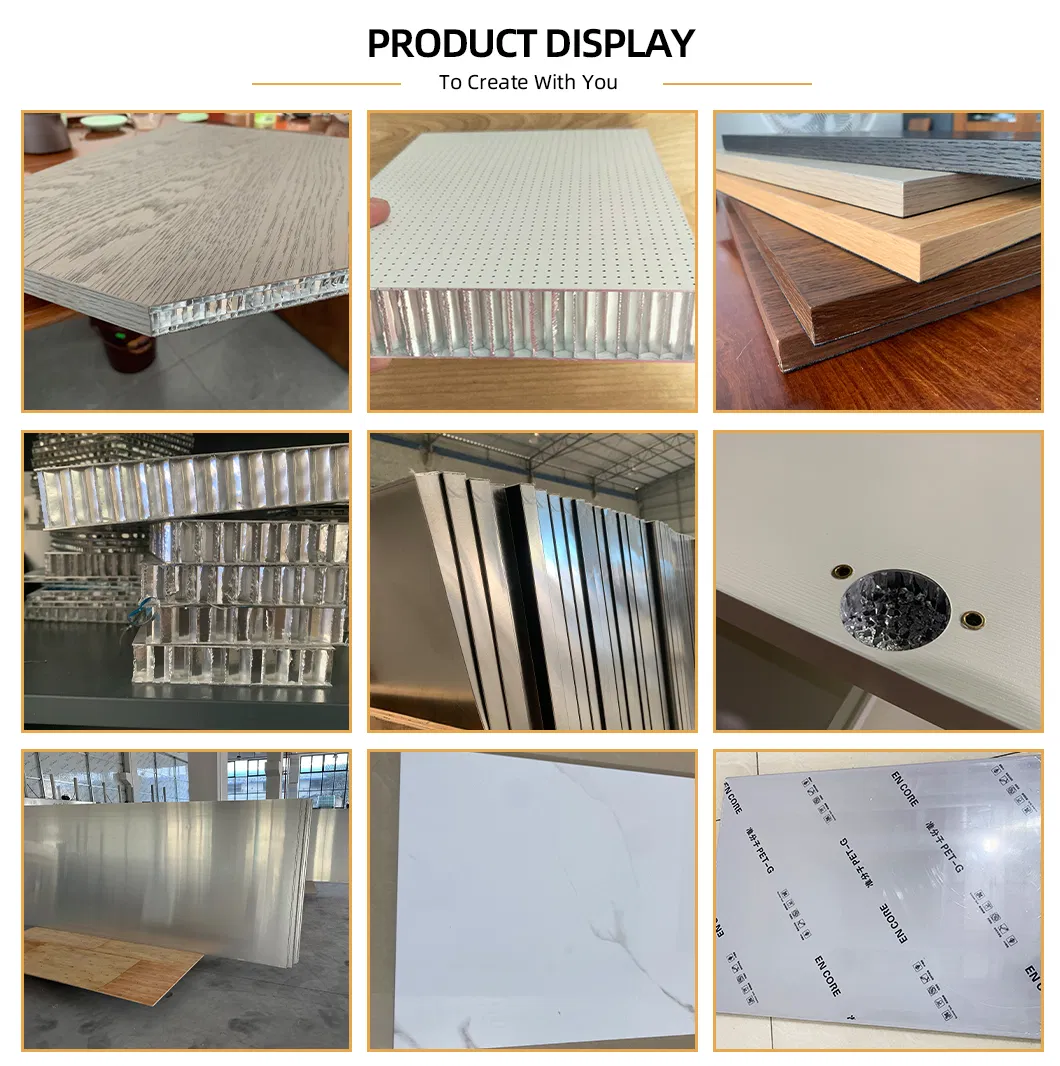

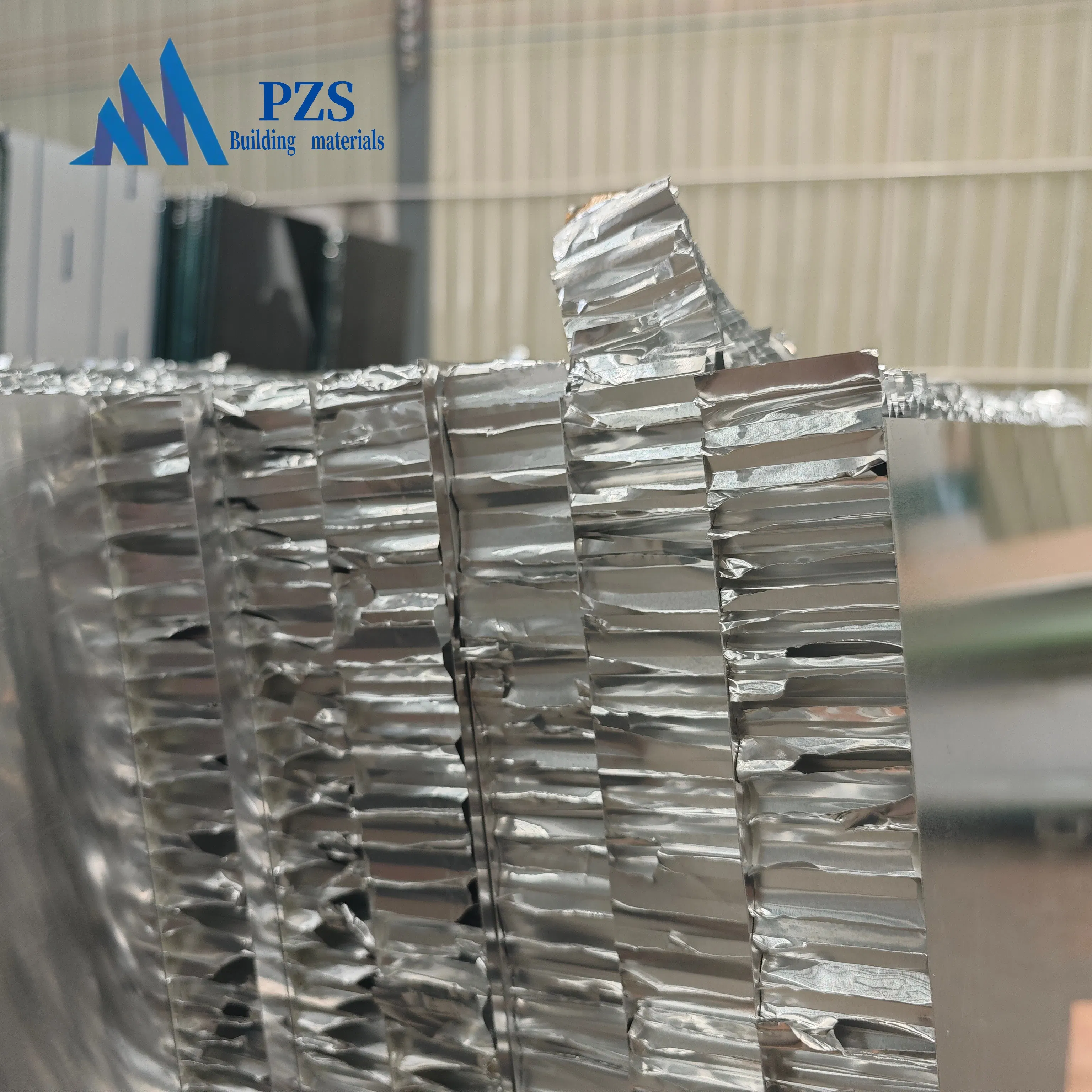

Aluminum Honeycomb Panel Features
Exterior Building Materials
Key Features & Advantages
✔
Ultra-light & High-strength: Weight is only 1/5~1/8 of traditional stone, while bending strength increases by 3~5 times.
✔
Flat & Non-deformed: The honeycomb core disperses stress, avoiding temperature deformation even in large-area installations.
✔
Easy Processing: Supports cutting, bending, and punching for complex curved designs (radian ≥ R500).
✔
Eco-Friendly: 100% recyclable materials with 70% energy-saving compared to natural stone mining.
Fire Resistance Performance

Our panels are Class A non-combustible materials, passing GB 8624 / ASTM E84 standards. With a melting point of 660℃, they release no toxic gases and act as a structural fire barrier, blocking the vertical spread of flames.

📏 Technical Specifications
Conventional Thickness 5mm~30mm, customizable Panel Options Natural stone (3-5mm) / Aluminum / Ceramic
Applicable Temperature -50℃ to +150℃ Life Cycle 30 years+ (Outdoor)
Packaging Export Plywood boxes Fire Prevention Class A
Sound Resistance 25dB+ noise reduction Annual Capacity 100,000 m²/year
🏭 Manufacturing Excellence

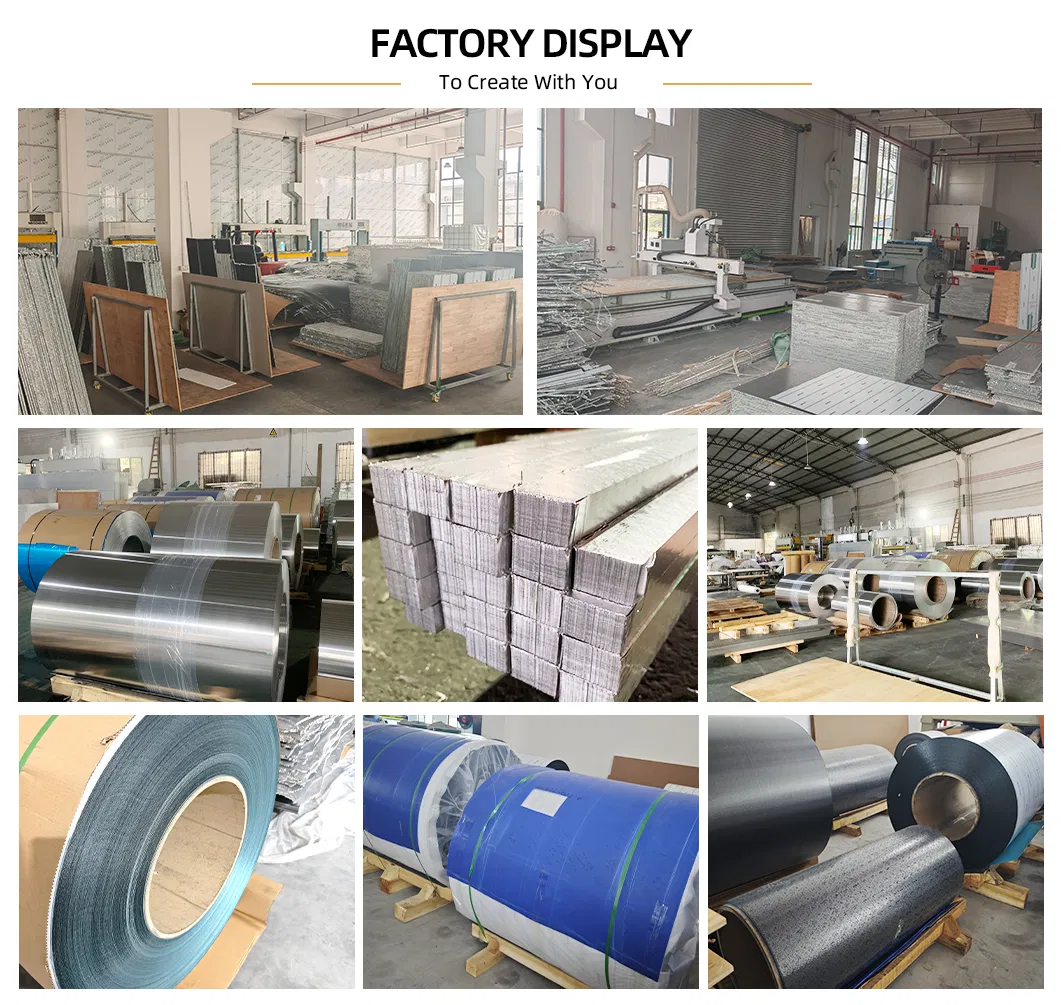

Manufacturing Facility

With a decade of specialized expertise in advanced honeycomb composite panels, our manufacturing base delivers precision-engineered solutions for architectural facades and industrial applications worldwide. Our facility is equipped with automated cutting lines, CNC routers, and vacuum hot-press bonding systems to ensure the highest quality standards.

Global Applications:
  • Architecture: Curtain walls, ceilings, column cladding
  • Transportation: High-speed train interiors, ship bulkheads
  • Specialized Spaces: Hospitals, Cleanrooms, Luxury retail
⚙️ Production Process

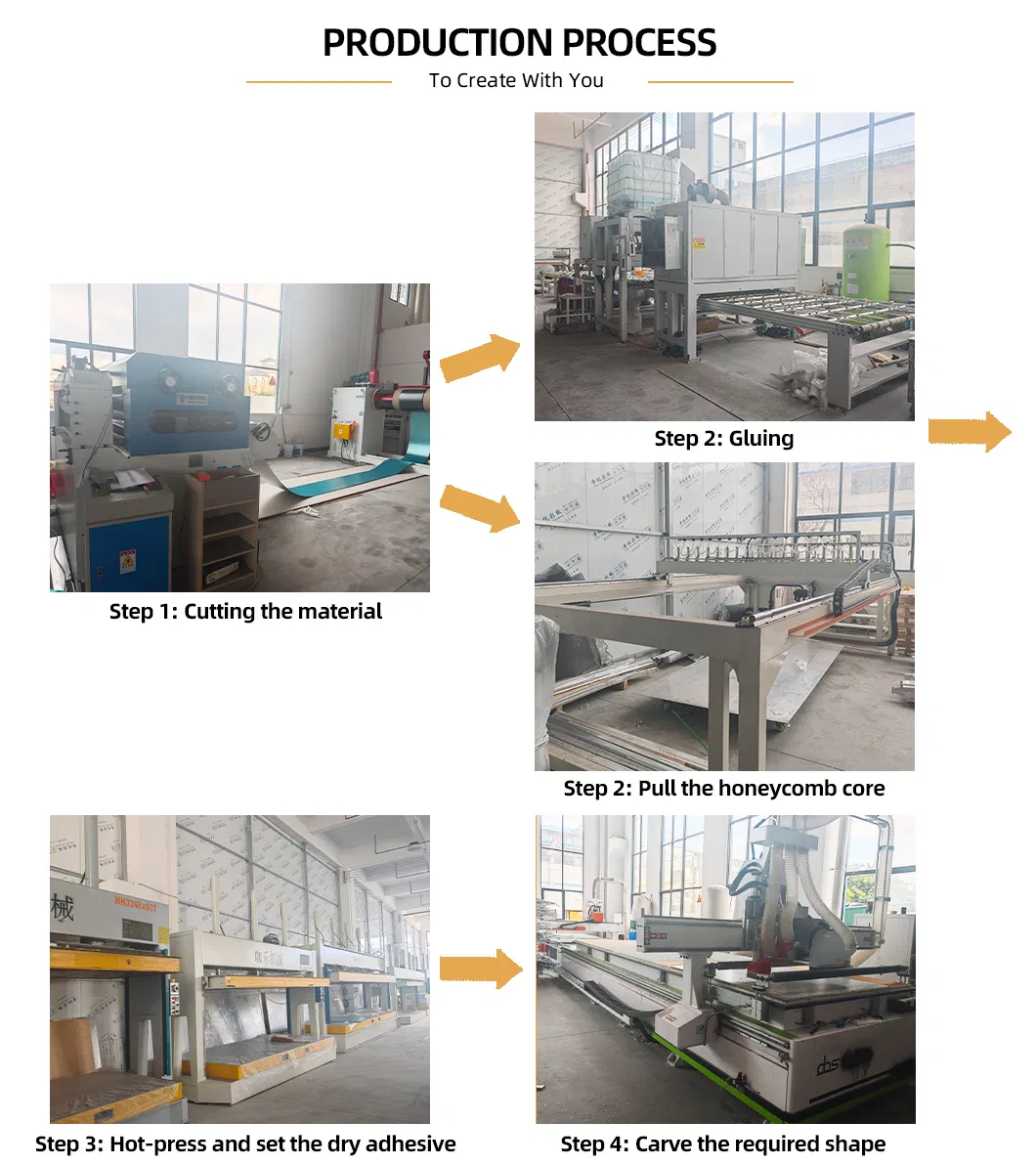

Production Workflow
1.
Material Prep: Cleaning AA3003/AA5052 aluminum coils.
2.
Pre-Treatment: Chromating or zirconium treatment for superior adhesion.
3.
Stabilization: Core resin impregnation and controlled expansion.
4.
Composite Bonding: High-pressure vacuum hot pressing at 120-140℃.
5.
Post-Processing: CNC precision trimming and edge sealing.
6.
Quality Control: Peel strength testing (≥7N/mm) and laser flatness scanning.
📦 Packing & Delivery

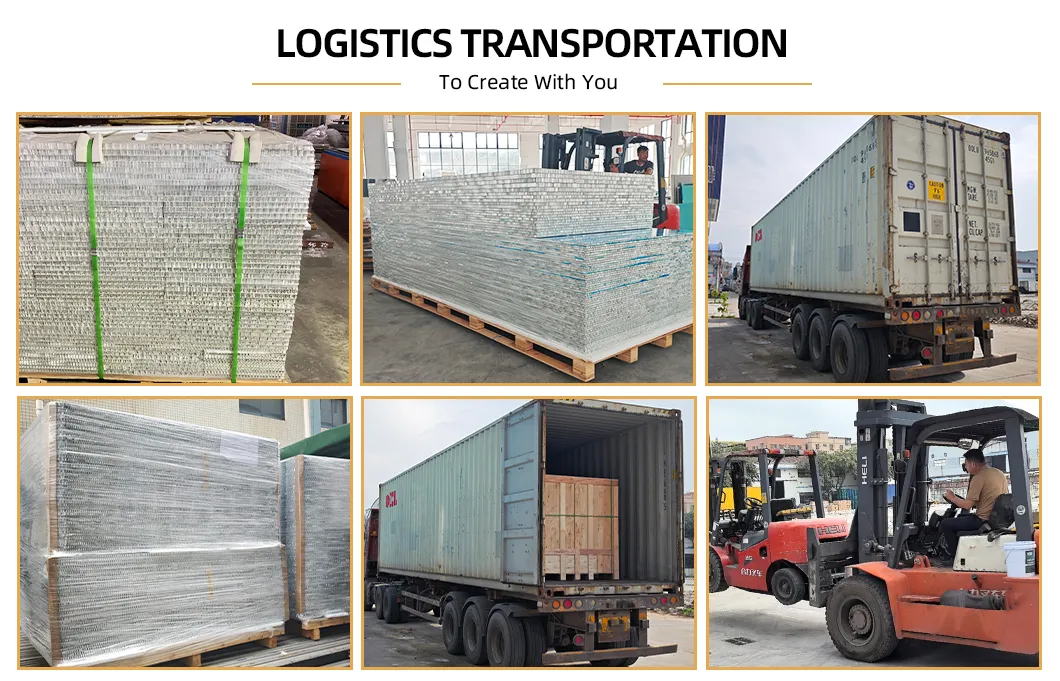

Export Packaging
Package Size10.0cm * 20.0cm * 1.8cm
Gross Weight1.000kg
TransportPlywood Boxes for Export
Frequently Asked Questions
What is the fire rating of your aluminum honeycomb panels?
Our panels are rated as Class A non-combustible materials according to GB 8624 and ASTM E84 standards, making them safe for high-rise buildings and marine use.
How much weight can be reduced compared to solid stone?
Using our composite honeycomb structure can reduce weight by approximately 70% to 80% compared to traditional solid stone slabs while increasing impact resistance.
What is the expected service life for outdoor installations?
The panels are designed for long-term durability with a life cycle of 30+ years for outdoor curtain walls, thanks to their weather-resistant PVDF coatings.
Are the panels customizable in terms of size and finish?
Yes, we support bespoke sizes up to 4000×2000mm and thicknesses from 10mm to 50mm, with various finishes including woodgrain, stone-effect, and anodized surfaces.
How do these panels contribute to sound insulation?
The honeycomb core structure provides excellent sound damping, achieving a noise reduction effect of approximately RW 25 dB.
Are these building materials environmentally friendly?
Absolutely. Our aluminum panels and cores are 100% recyclable, and our production process uses VOC-free adhesives, contributing to LEED certification.
