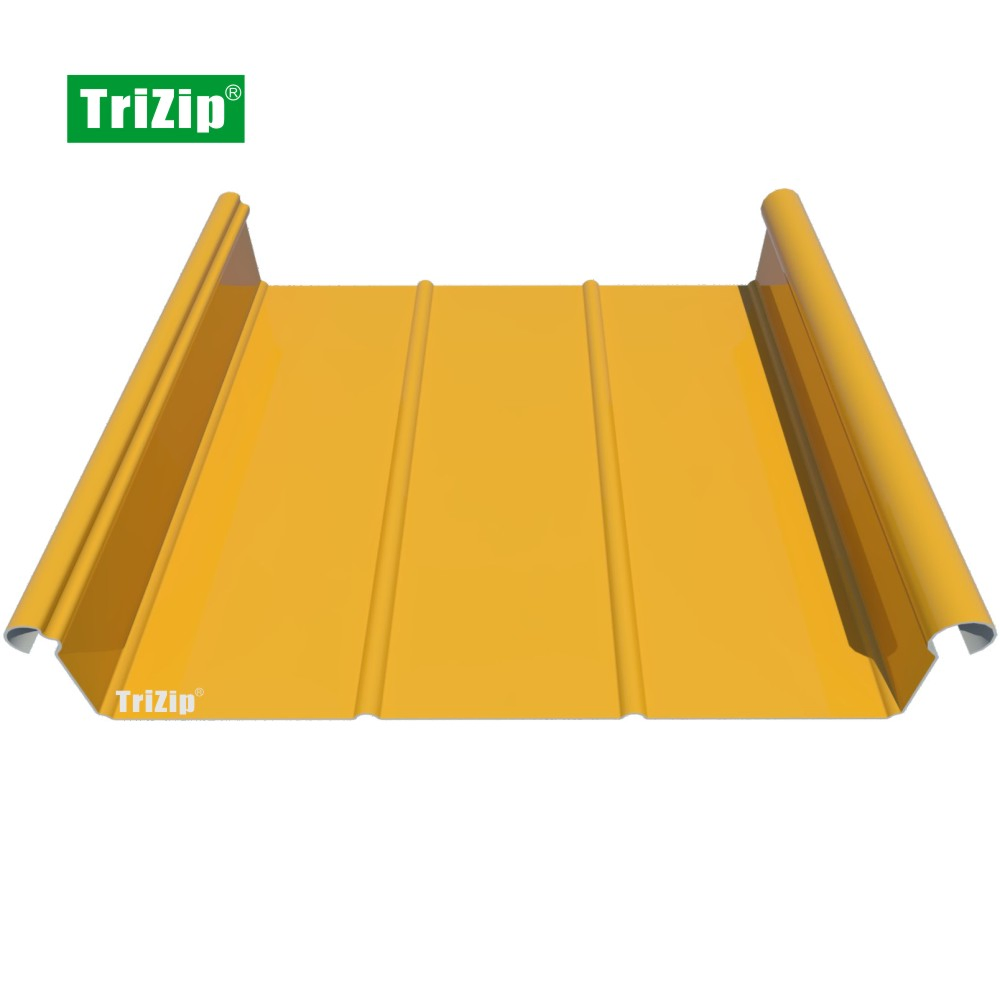

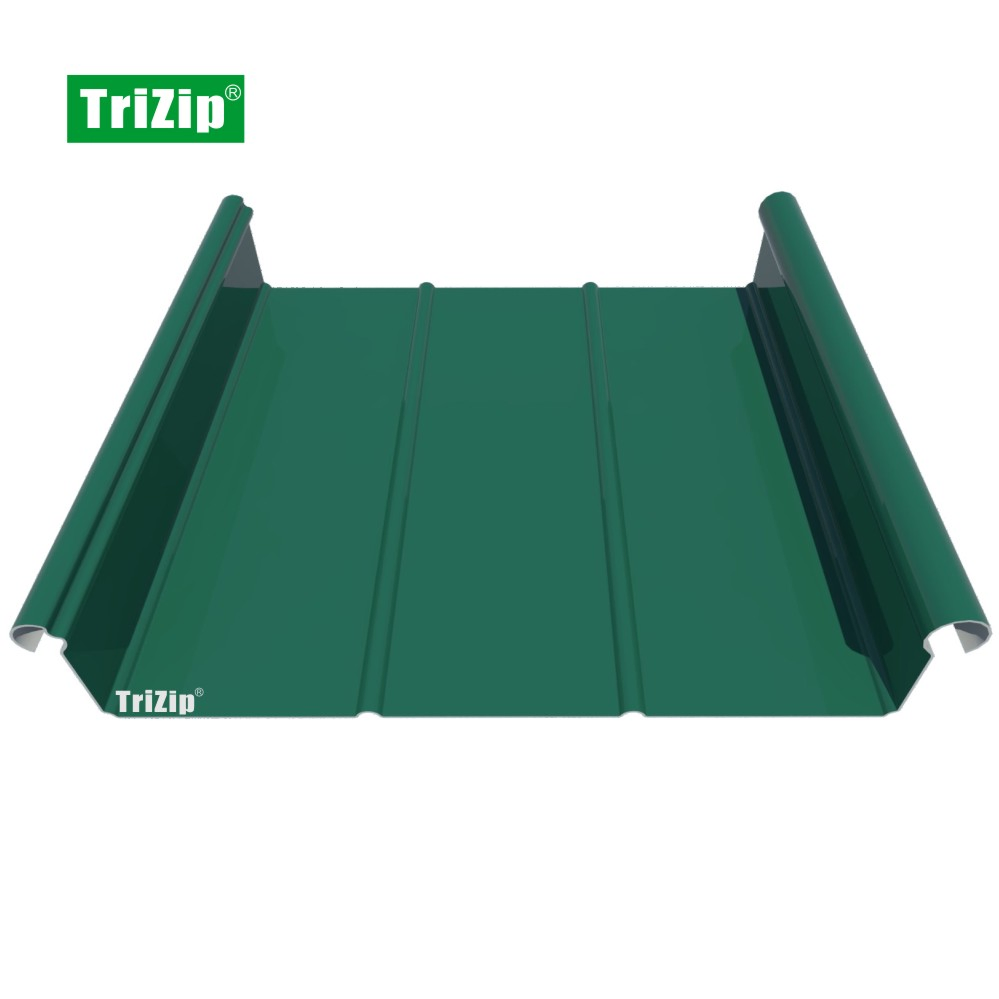

Aluminum Alloy Standing Seam Roofing, Facade, Cladding System for Exhibition Centre

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Technical Specifications

Model NO.
Trizip65-330
Material
Aluminum Alloy
Type
Standing Seam
Thickness
0.8mm ~ 1.2mm
Rib Height
65mm
Construction Width
500mm
Fire Test
Class A
Material Warranty
More Than 50 Years
MOQ
1,000 Meters
Certification
ISO, SGS, CNAS
🏗️

Product Overview

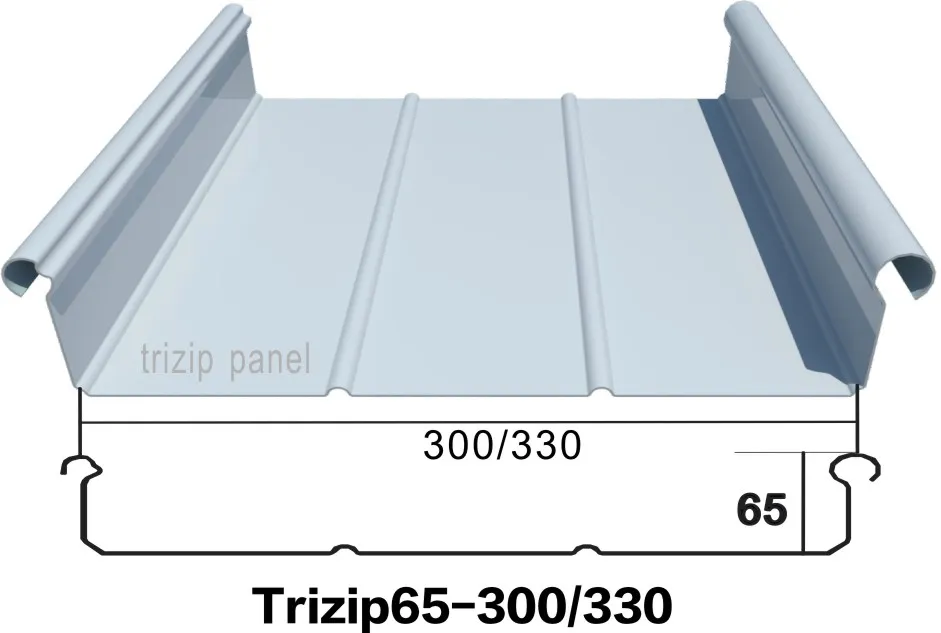

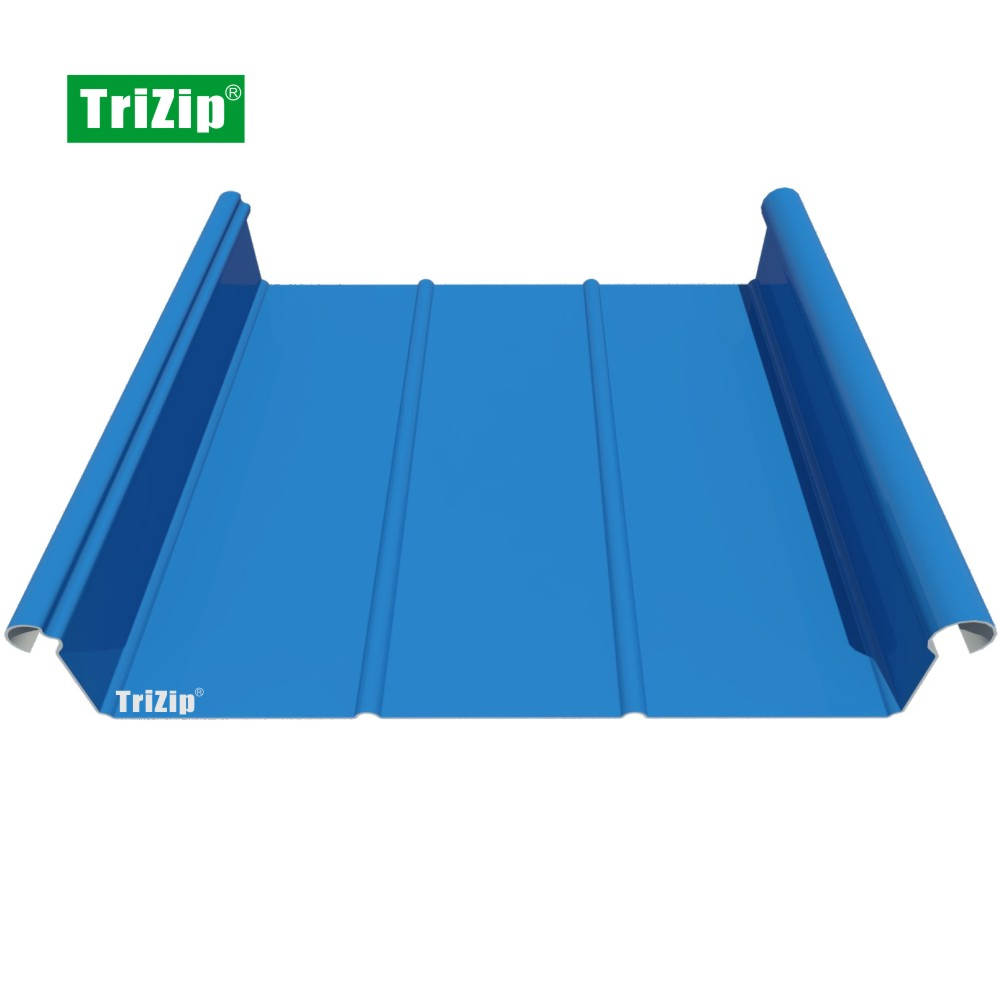

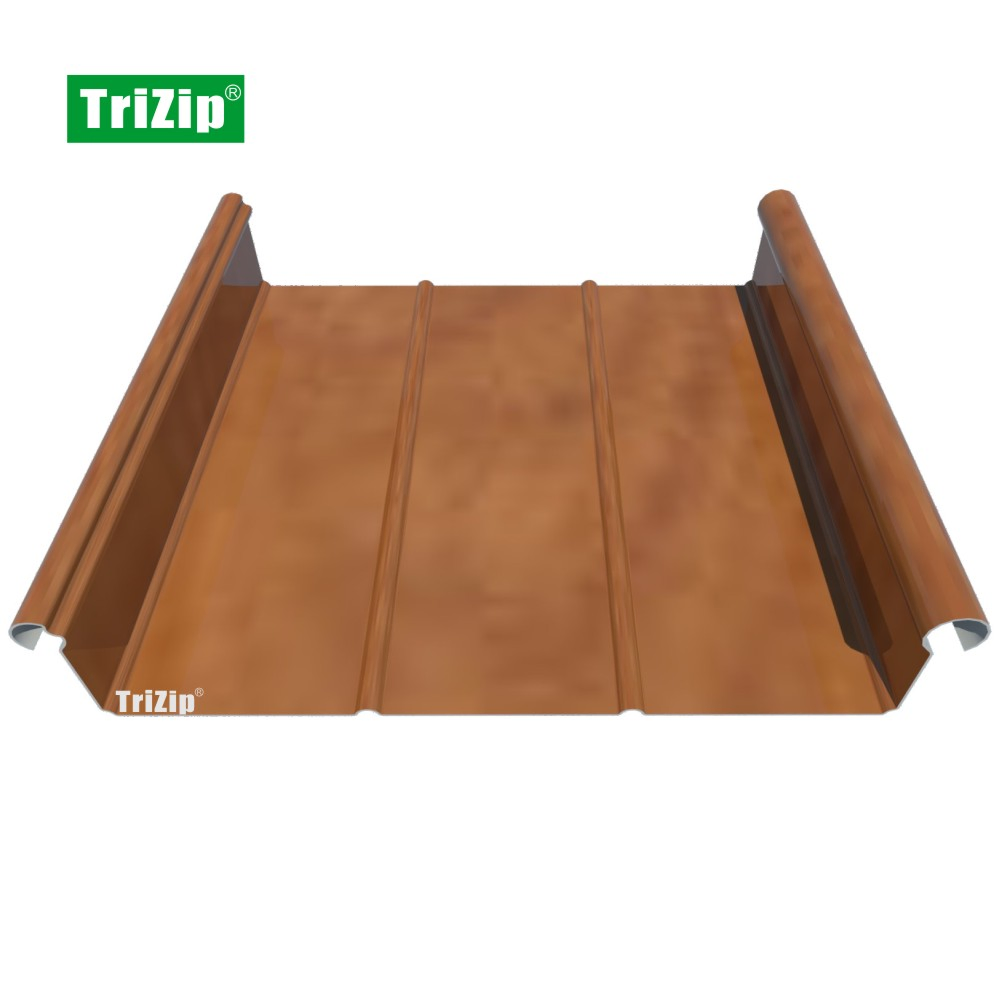

Aluminum Alloy Standing Seam Roofing

Trizip Metal Aluminum Alloy Standing Seam System is a premier solution for roofing, facades, and cladding. Designed for broad-span structures, it provides a self-supporting, watertight finish suitable for high-end architectural projects.

Common Raw Material: Aluminum Alloy
Surface Finishing: PVDF, PE, Stucco
Application: Airports, Railway Stations, Exhibition Centers, Stadiums, and Commercial Buildings.

Key Benefits & Features

System Benefits
No Penetration No holes or punching during installation ensures total water tightness.

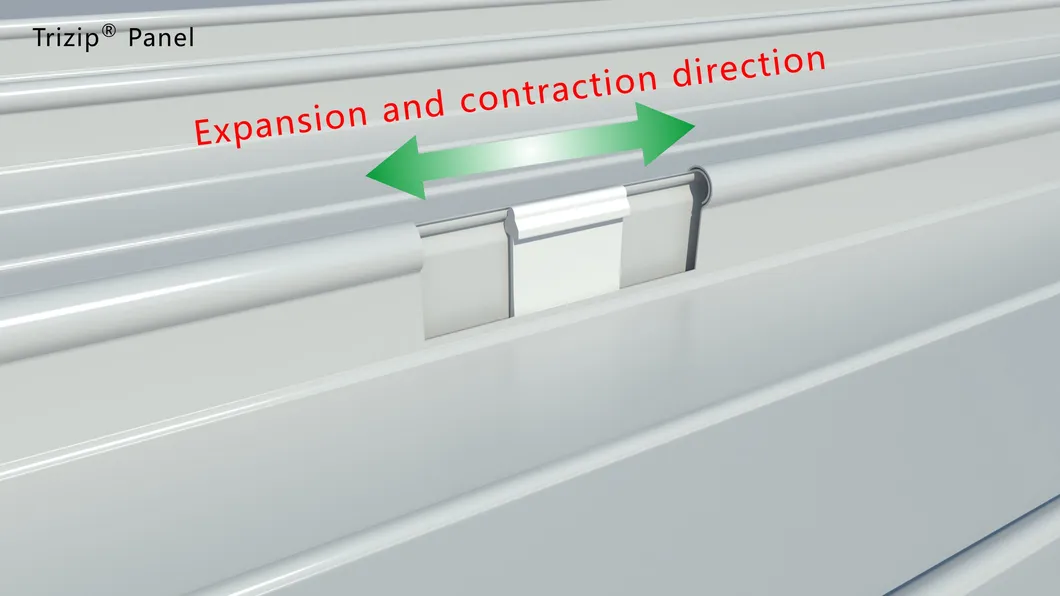

Thermal Expansion Hidden clips absorb thermal stress, preventing panel deformation.
Low Pitch Ready Applicable for low pitch roofs ≥1.5°.
Maintenance Free High-performance material requires minimal upkeep over its 50+ year life.
Wind Uplift Resistance Tested to 7.2kpa (150psf) per FM4471 standards.
Acoustic Performance Excellent sound insulation (STC=50).
📐

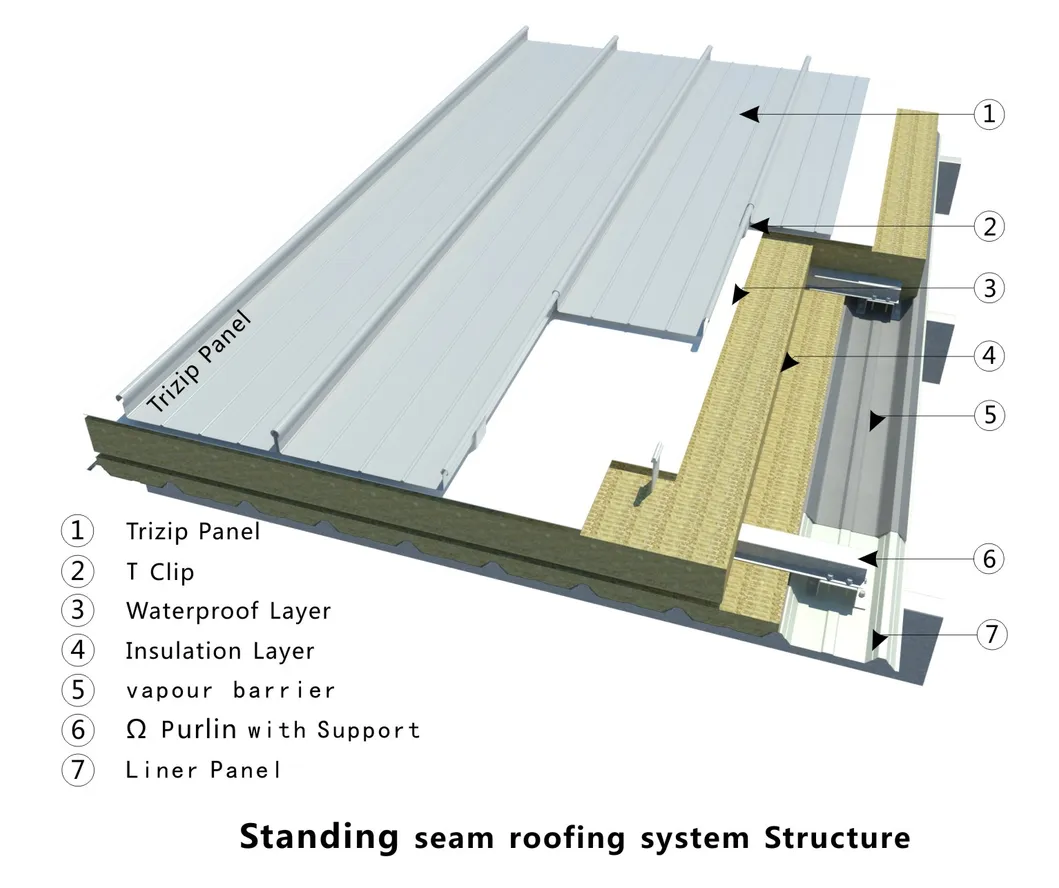

Structural & Functional Design

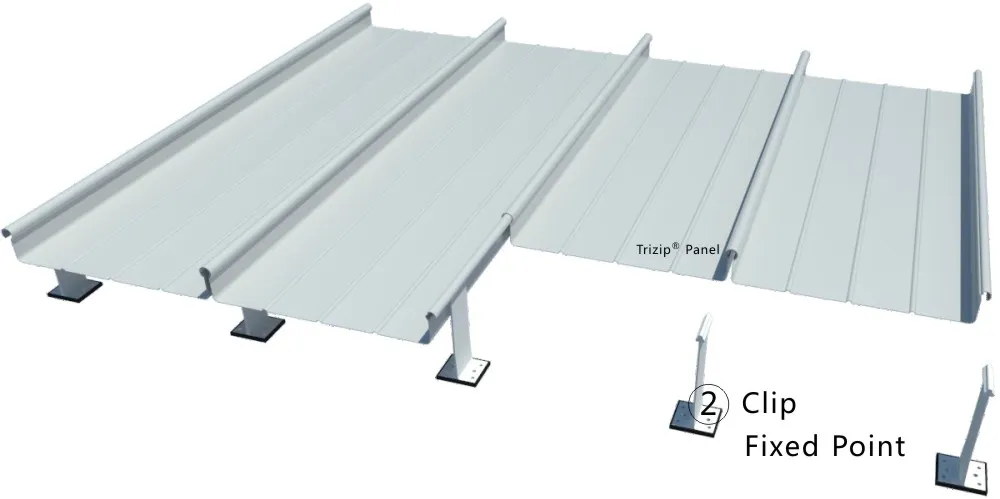

Design Detail 1
Design Detail 2

Water-proof & Ventilated: Breathable membranes prevent vapor penetration while ensuring airtightness.

Thermal Insulation: Mineral insulation cotton layers prevent heat transmission and optimize U-values.

Lightning Protection: The metal roofing system acts as an integrated lightning arrester.

Functional Diagram
🛠️

Installation & Accessories

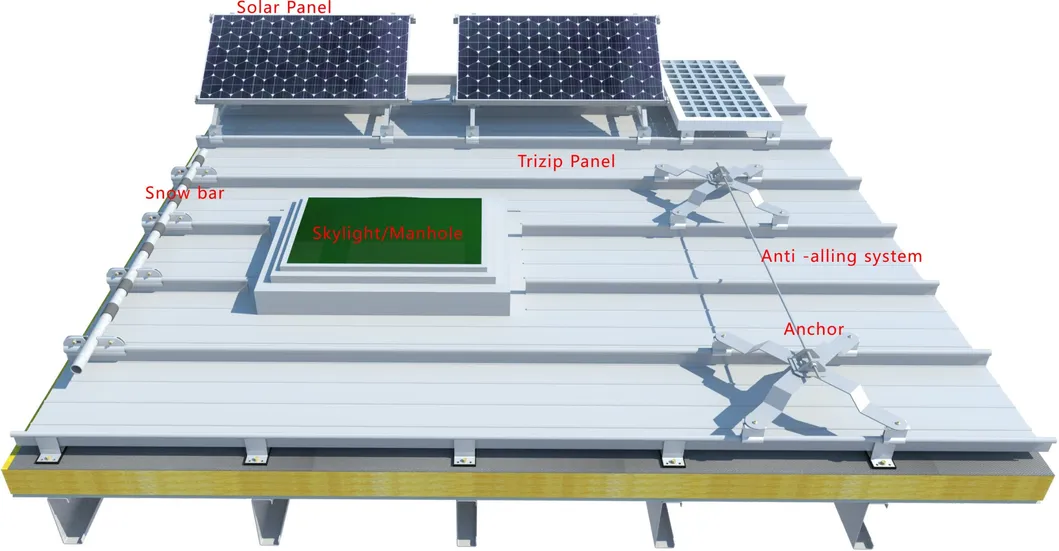

Roof Accessories

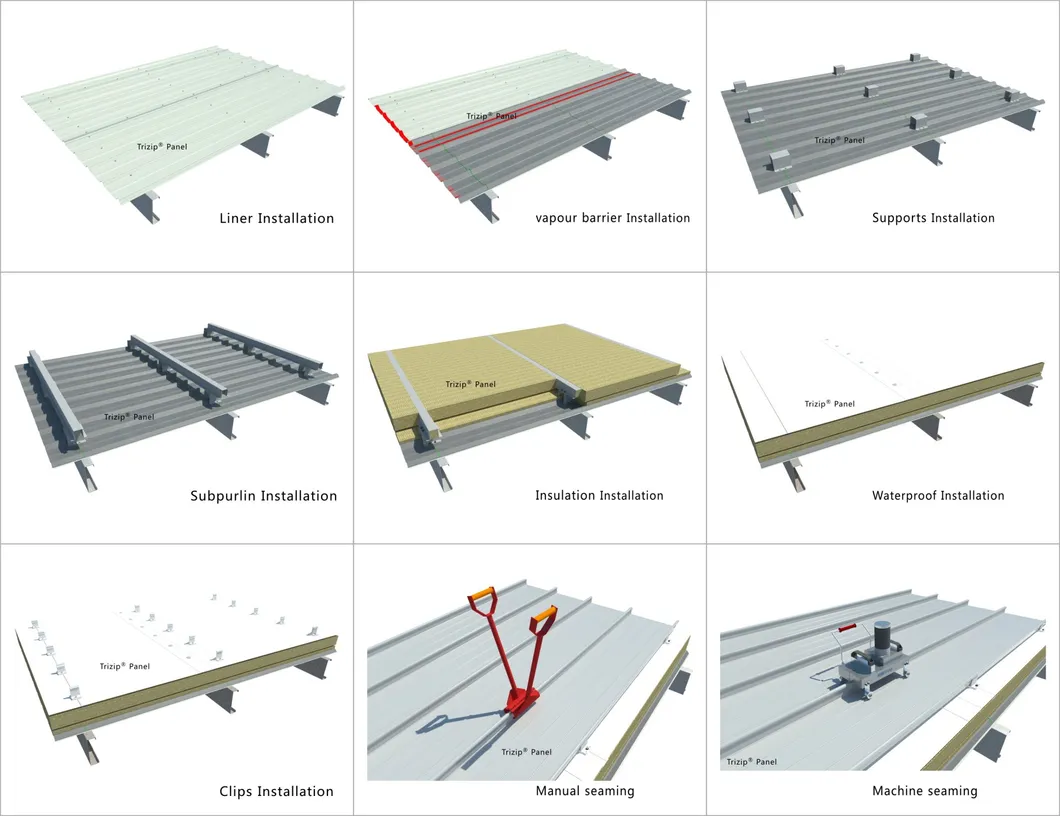

Installation Process

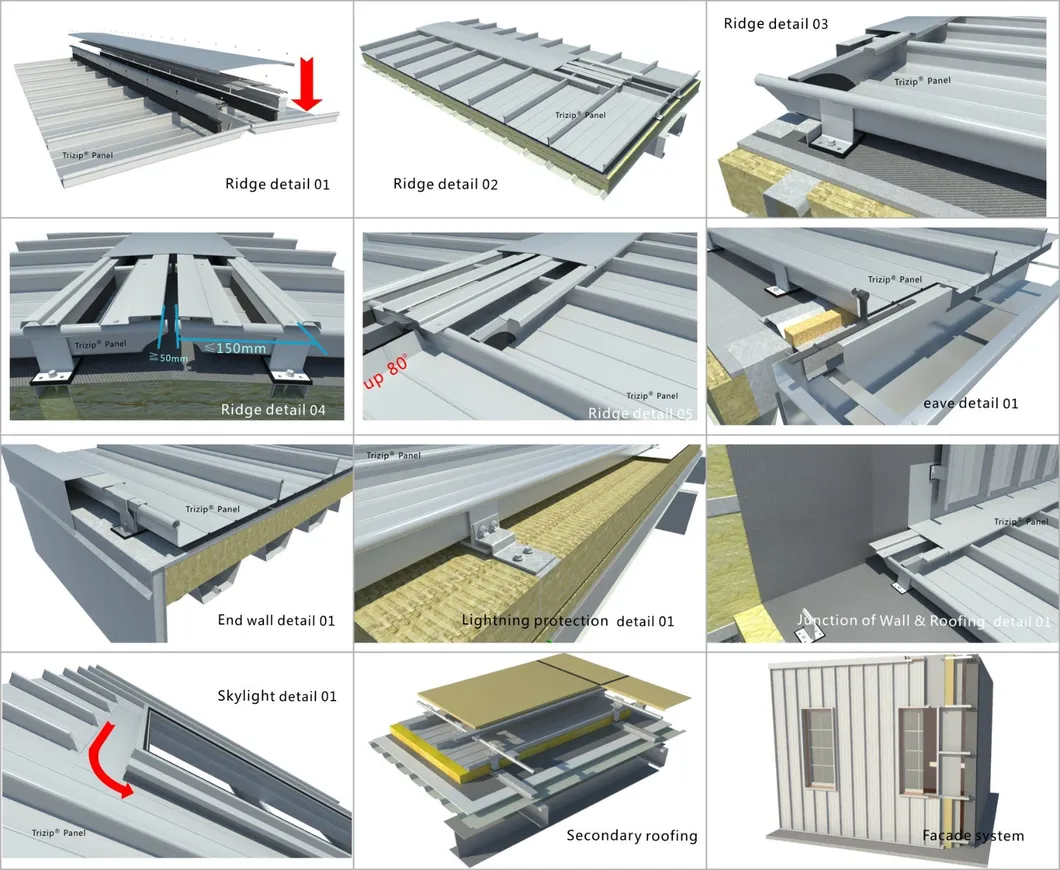

Technical Details

Our technical department provides full support for roofing system construction, ensuring every individual project detail meets architectural requirements.

🎨

Patterns & Color Options

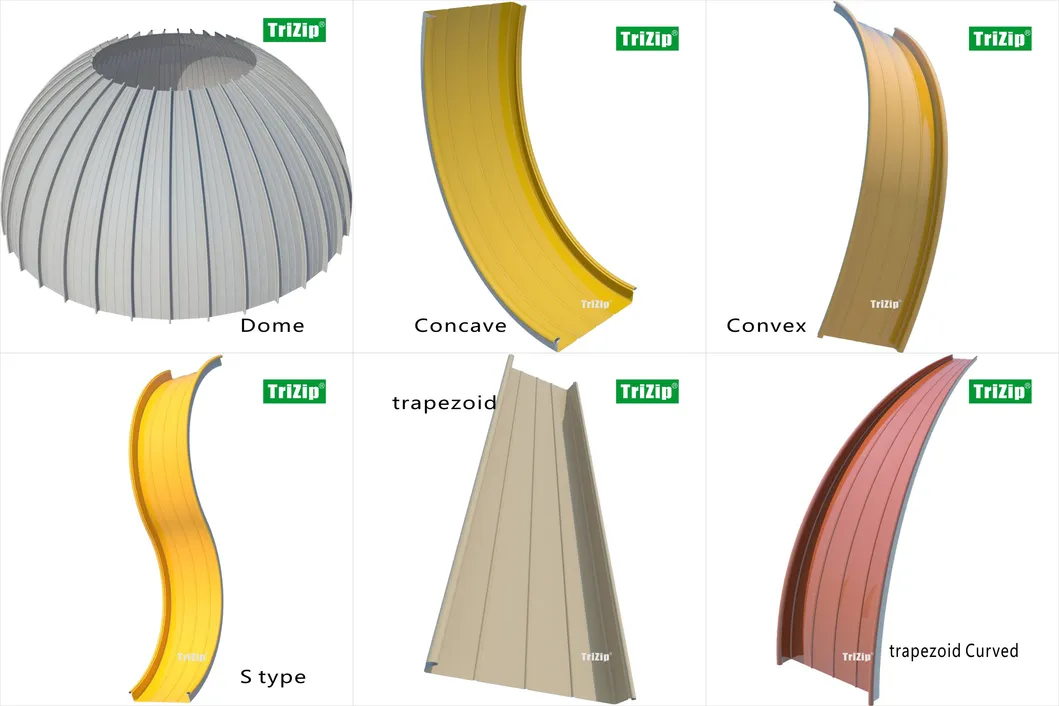

Special Patterns

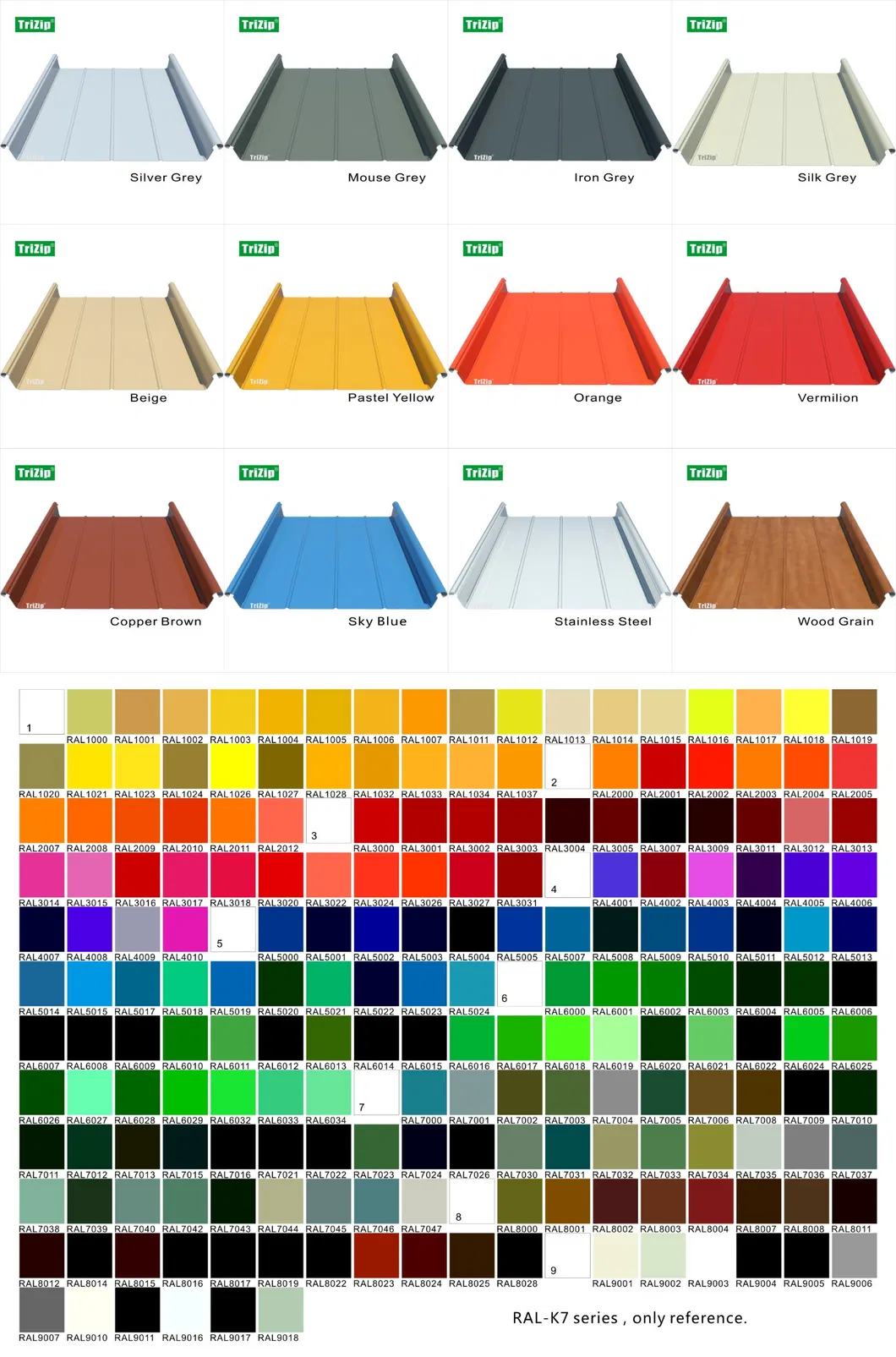

Color Chart

We offer PVDF and Polyester coatings in a vast range of colors. Roll-coated aluminum ensures consistency and durability for the entire roof surface.

🏢

Project Cases

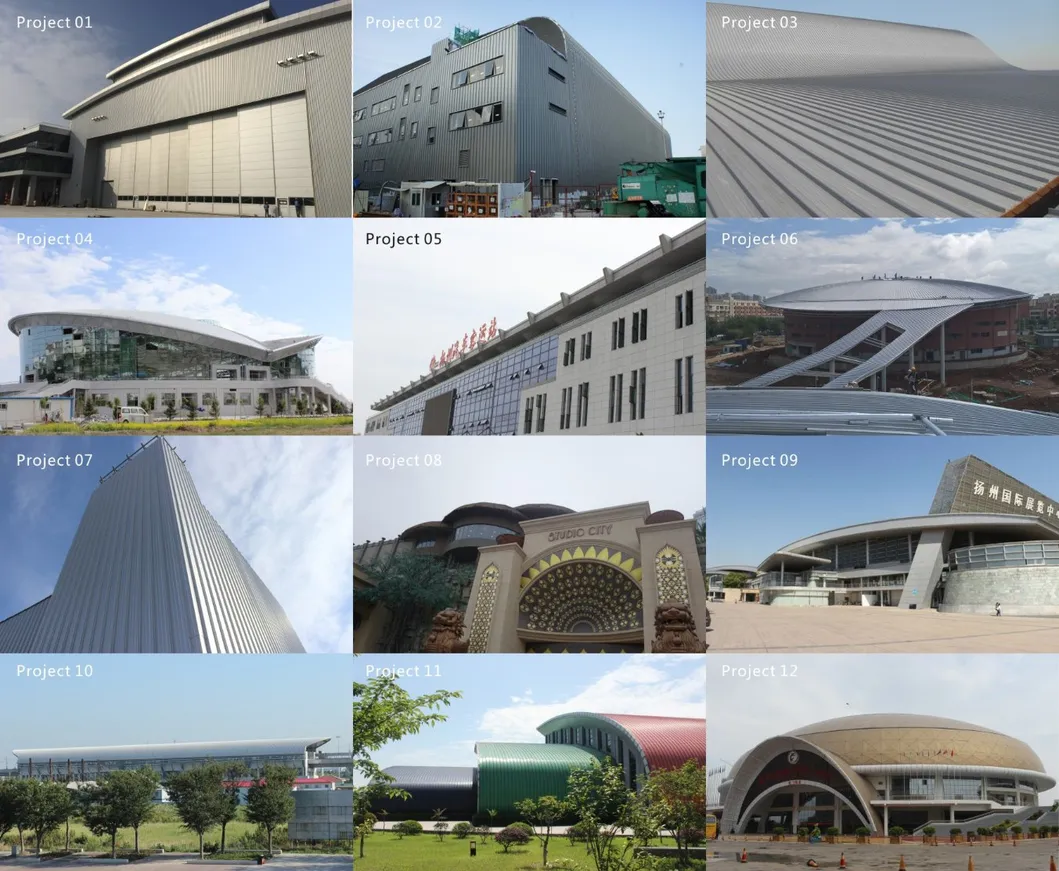

Project Case Study

Frequently Asked Questions

How long is the delivery time?
The standard delivery timeframe is 7-30 days after the receipt of the deposit or L/C at sight.
Are samples available for quality checking?
Yes, samples are provided free of charge; however, the delivery freight costs are to be covered by the customer.
What are the accepted payment terms?
We support LC, T/T, DDP, DDU, and OA. Other specific payment terms can be discussed upon request.
What information is needed for a quick quotation?
Please provide the thickness, width, length, quantity, RAL color, zinc coating specifications, and the destination port.
What is the Minimum Order Quantity (MOQ)?
Our standard MOQ for the standing seam roofing panels is 1,000 meters.
What is the expected service life of the Aluminum Alloy system?
Under common climate conditions, the system provides a service life of more than 50 years.
