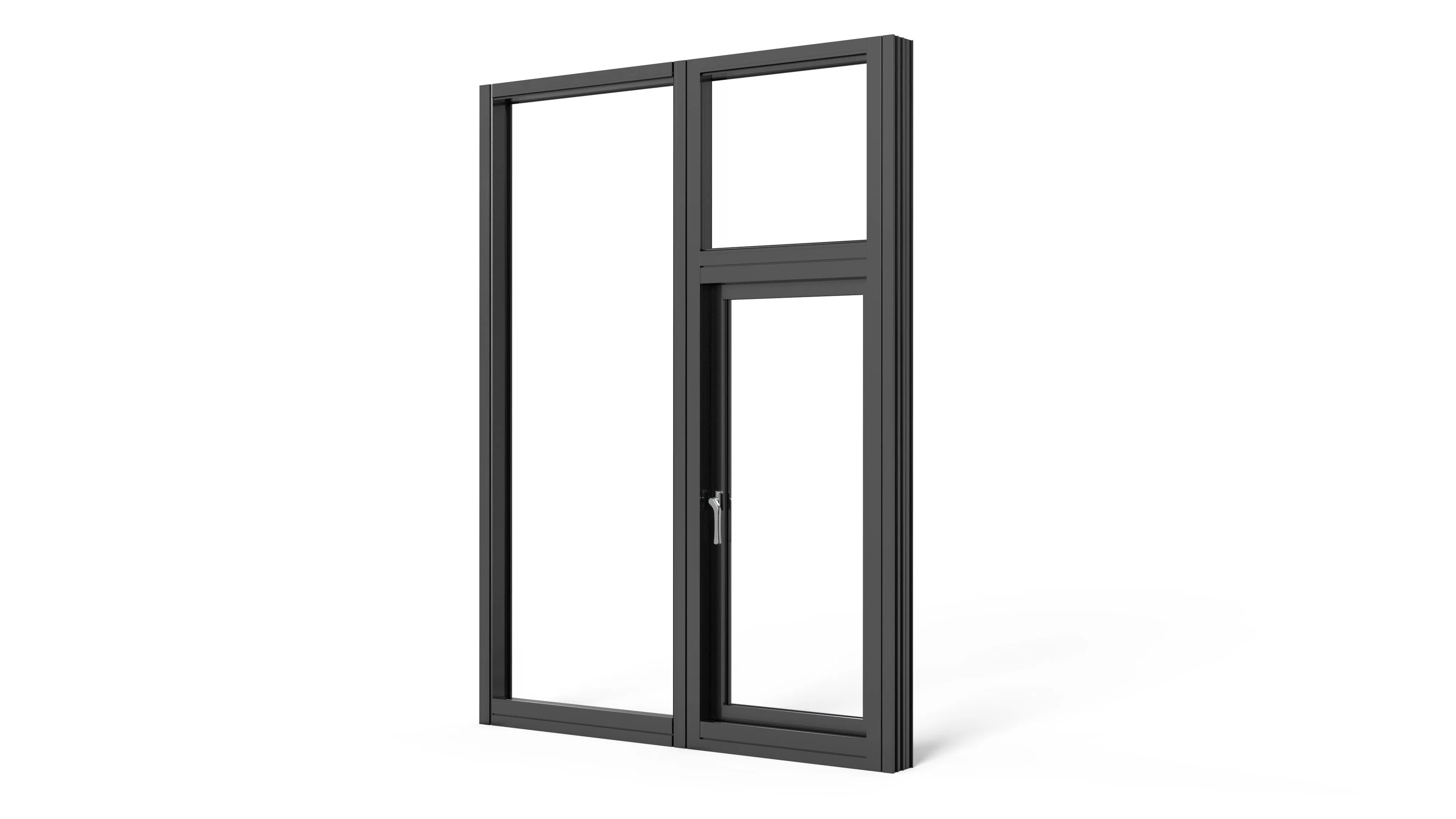

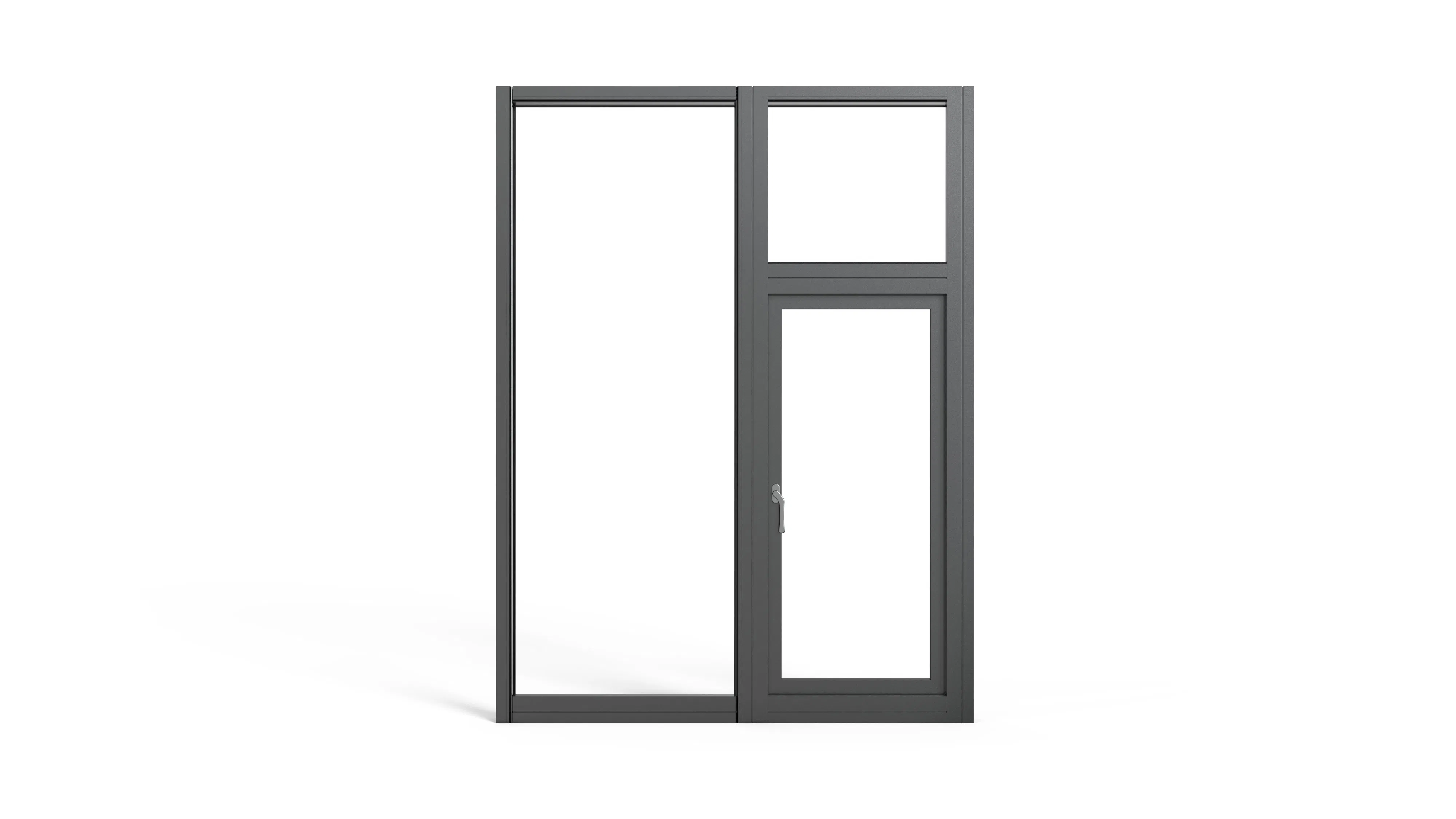

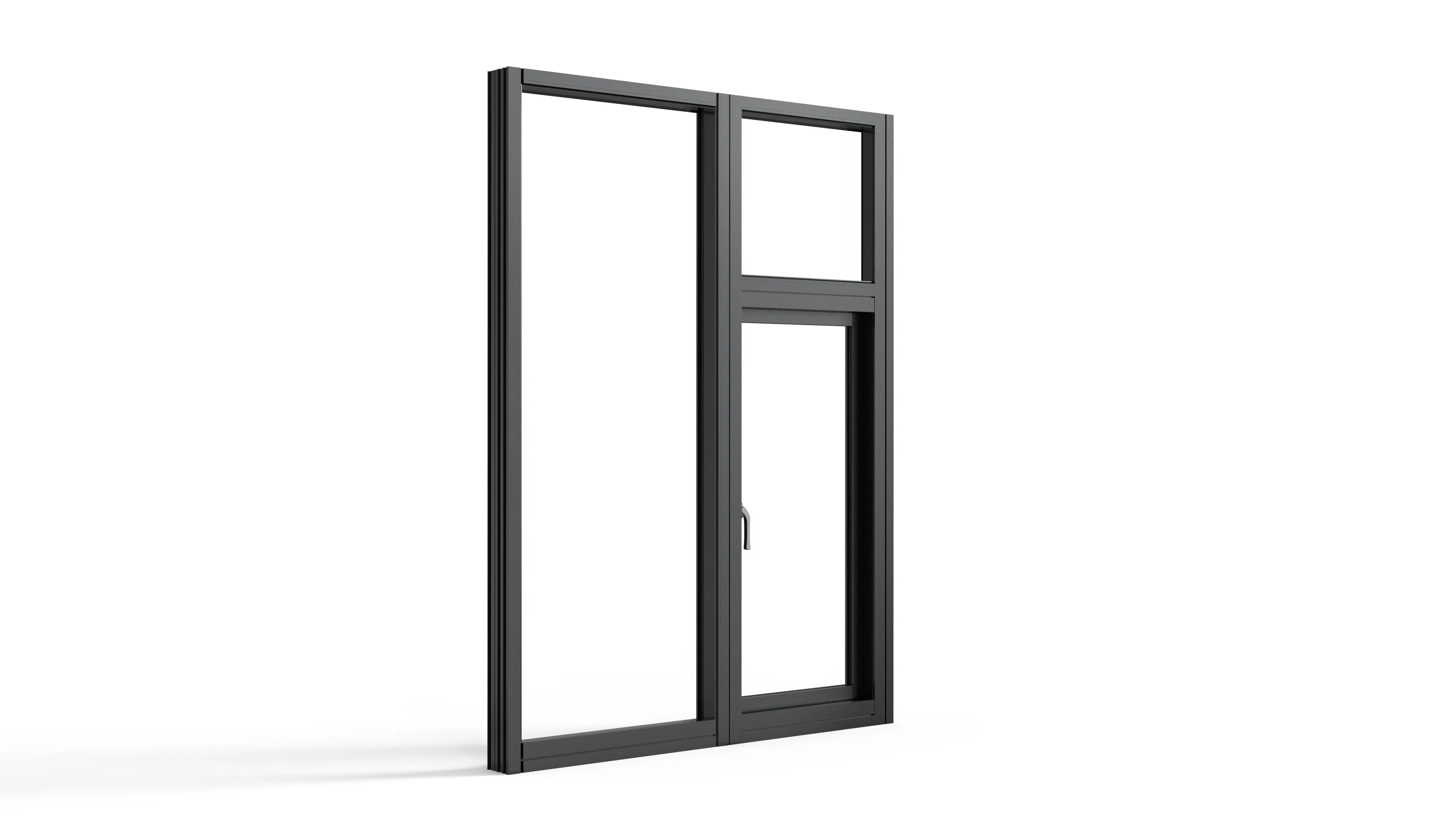

110 series is an elegant and affordable casement system with mesh. The glass sash opens outwards, while the mesh sash and burglar grill open inwards.
Equipped with high-quality EPDM tape and a three-seal design, it guarantees excellent air and water tightness. The opening sash flushes with the frame interior side, ensuring a neat perimeter.
| Aluminium Alloy | Extrusion Diameters | Billet Casting Line | Extrusion Line | Powder Coating |
|---|---|---|---|---|
| 6063/6061-T4,5,6 | 80mm-300mm | 2* Casting Lines | 14* Extrusion Lines | Vertical/Auto Lines |
| Factory Area: 1800 Acres | Annual Output: 100,000 Tons | Staff/R&D: 650/25 | ||
| Performance Metric | Value / Level |
|---|---|
| Heat Preservation Performance W(m2.k) | 2.0-2.2 (Level 6) |
| Sound Insulation Performance (DB) | 35DB (Level 4) |
| Watertight Performance (Pa) | 500PA (Level 5) |
| Airtight Performance | Level 6 |
| Wind Load Resistance (KPA) | 4.1KPA (Level 7) |

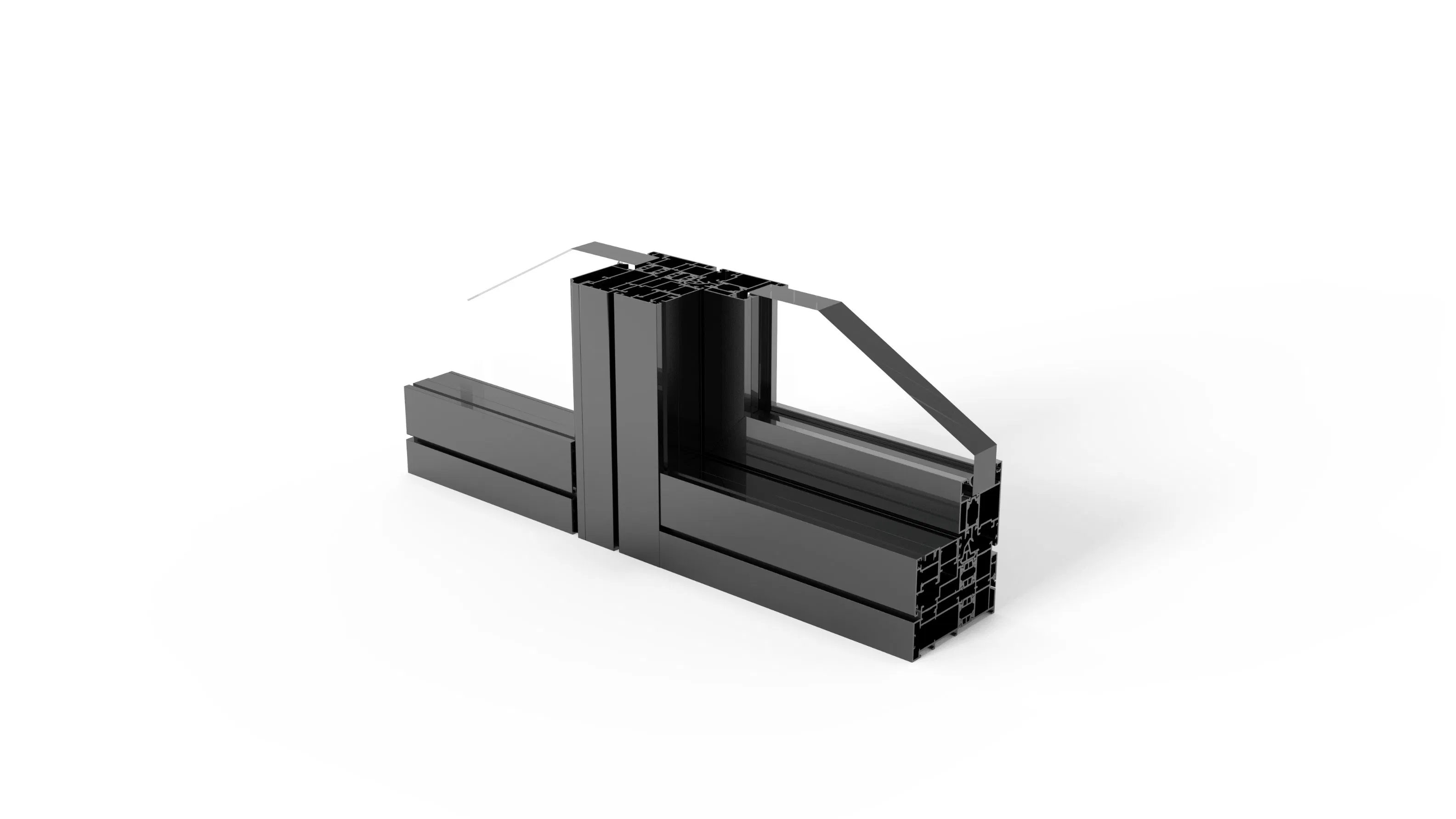

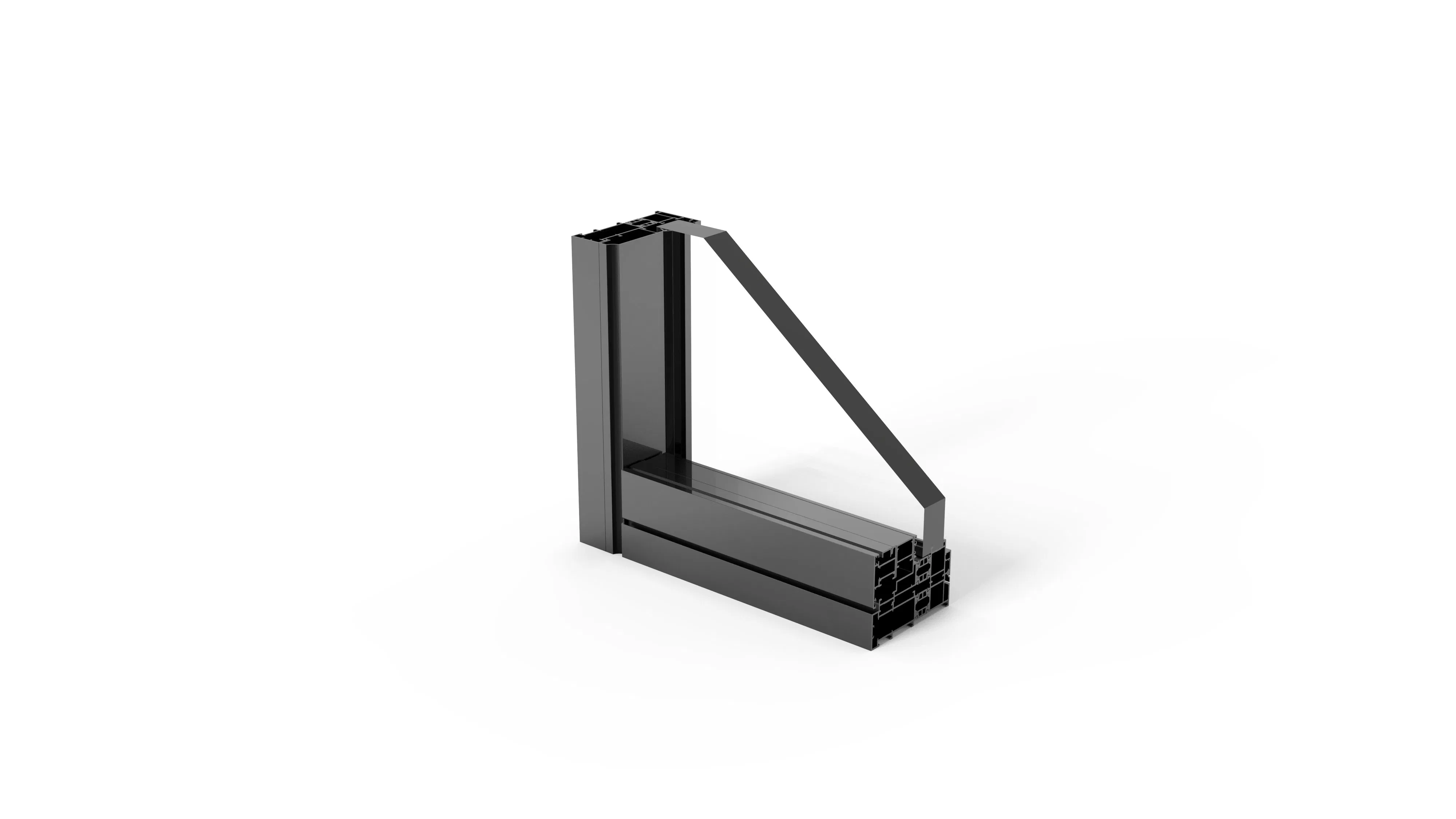

| Sash Range | Visible Width | Depth | Glass |
|---|---|---|---|
| W: 300-800mm H: 300-1600mm Weight: 40kg |
Frame: 52mm Sash: 70mm |
Frame: 110mm Sash: 55mm |
DGU: 30mm |
We provide a comprehensive range of architectural and industrial aluminium products:
Professional suggestions for engineering and design needs, providing solutions for various sizes and complex projects.
Facilitating technical support including wind load calculation, façade optimization, and installation guidance.
Development of new aluminium window and door systems with matching accessories to meet specific market requirements.
