Advanced Model 1325 Glue Spreading Composite Board System

📊 Basic Information

Model NO.	XLD-CPL001
Glue Type	PUR Adhesive, Solvent-based, Water-based Adhesive
Machine Type	Composite Product Line, Automatic
Voltage	380V 3phase 50Hz
Production Rhythm	30 seconds/Per PCS (Double-Sided Lamination)
Flow Accuracy	≤ ± 3%
Core Components	Motor, Pump
Certification	ISO

🏗️ Product Description

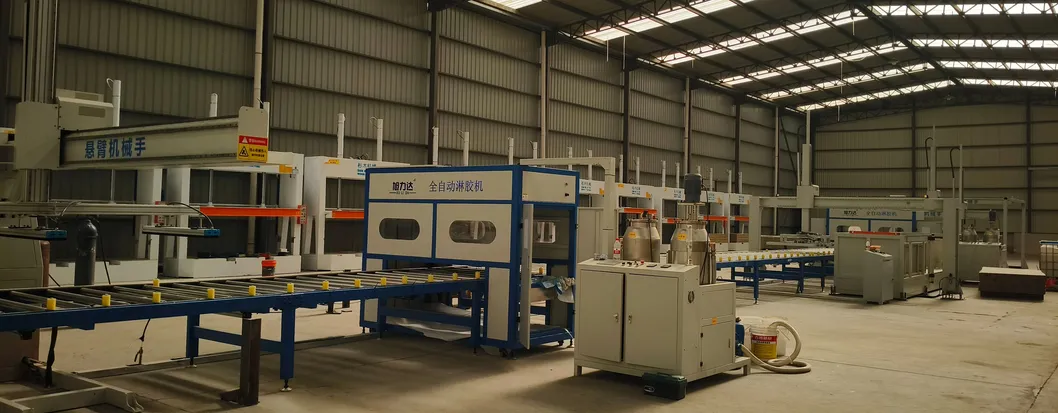

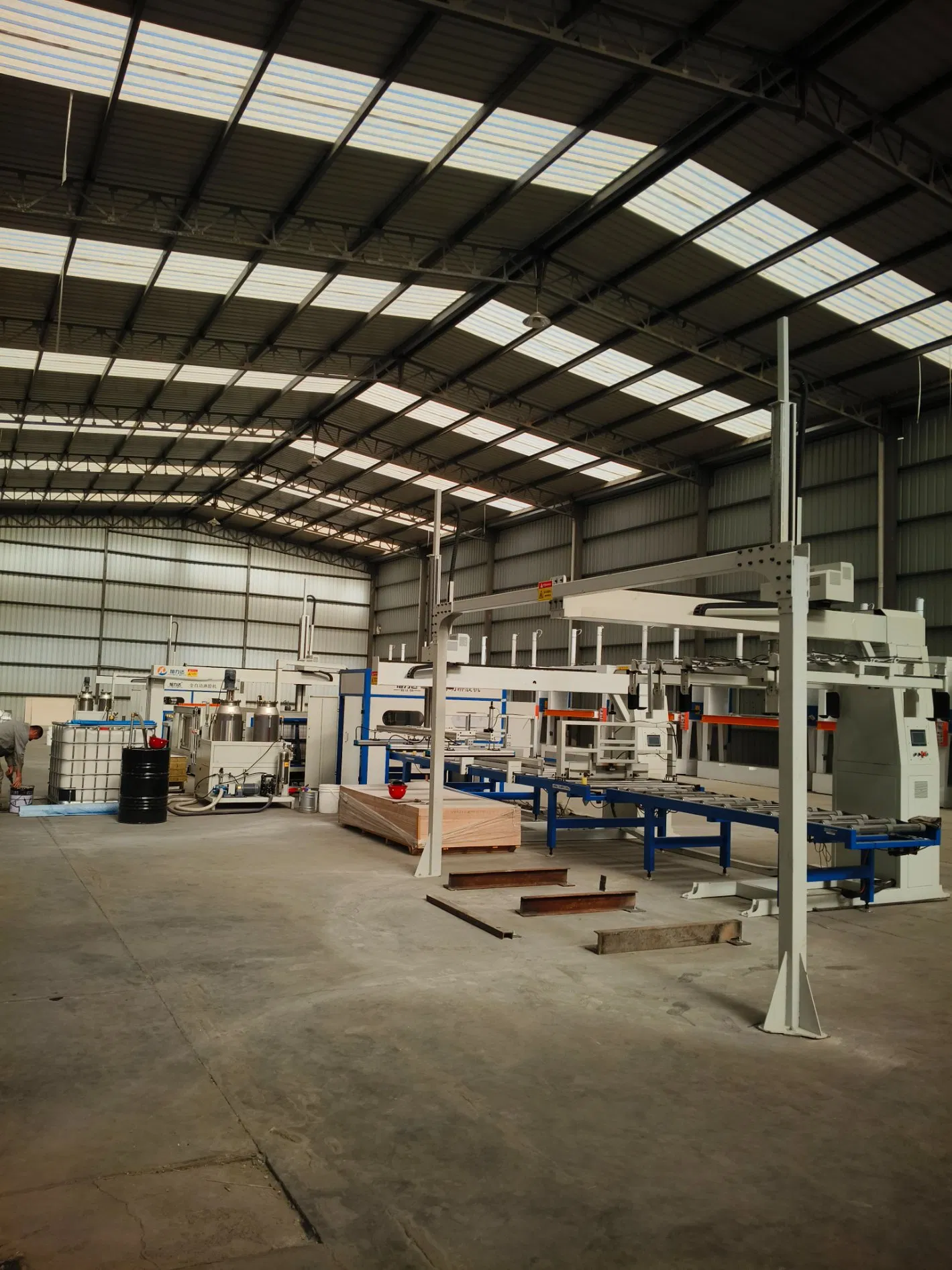

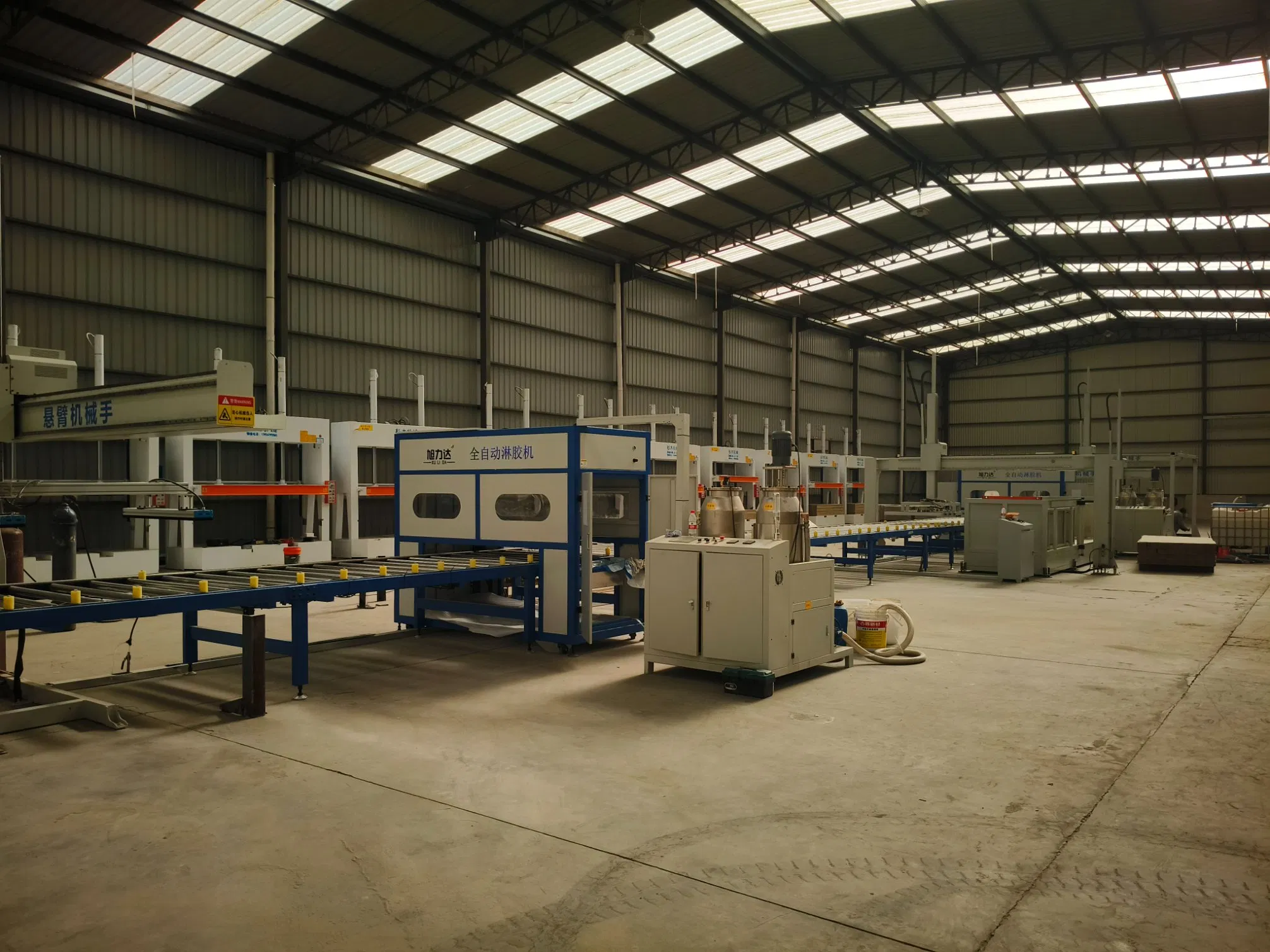

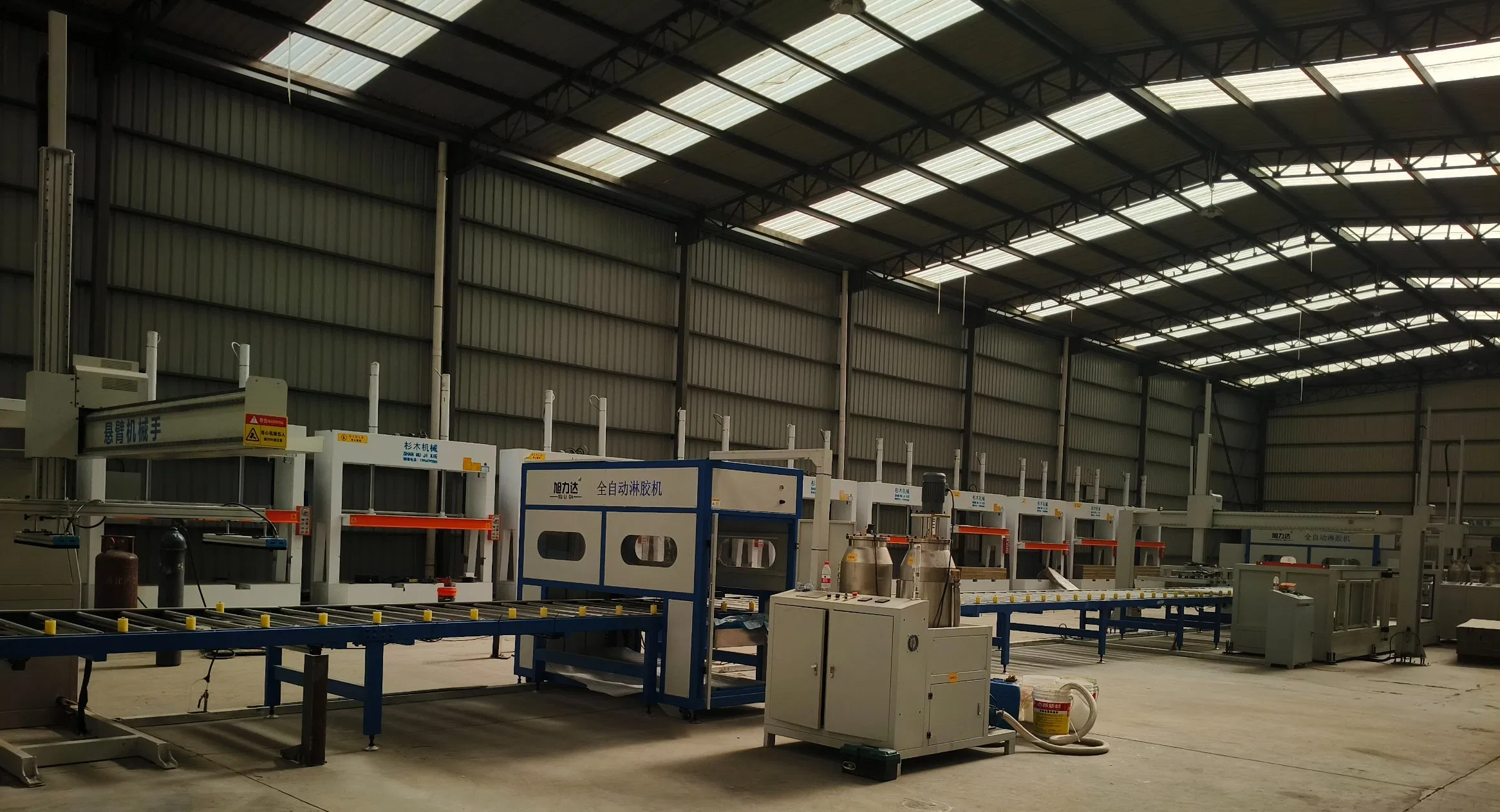

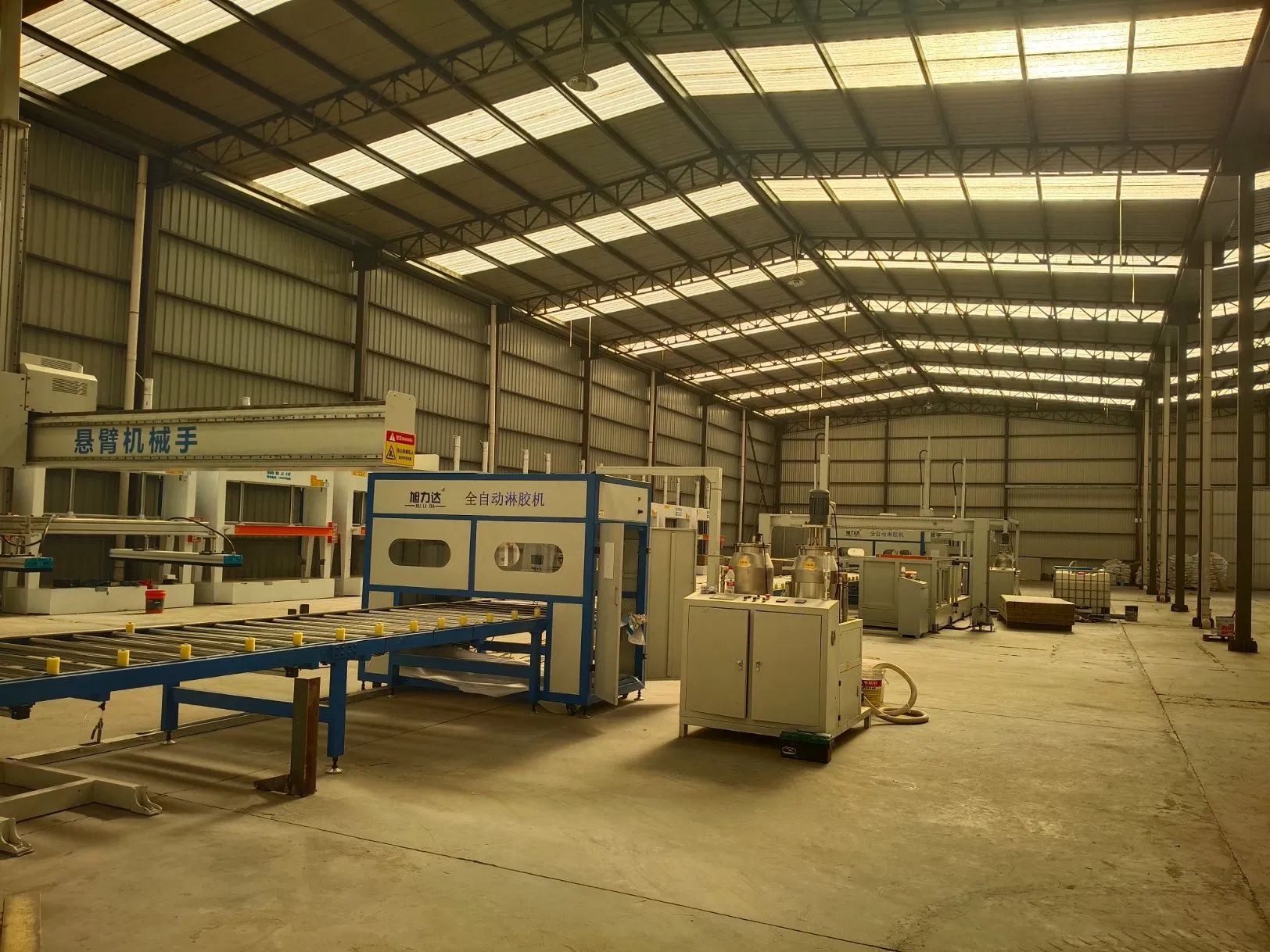

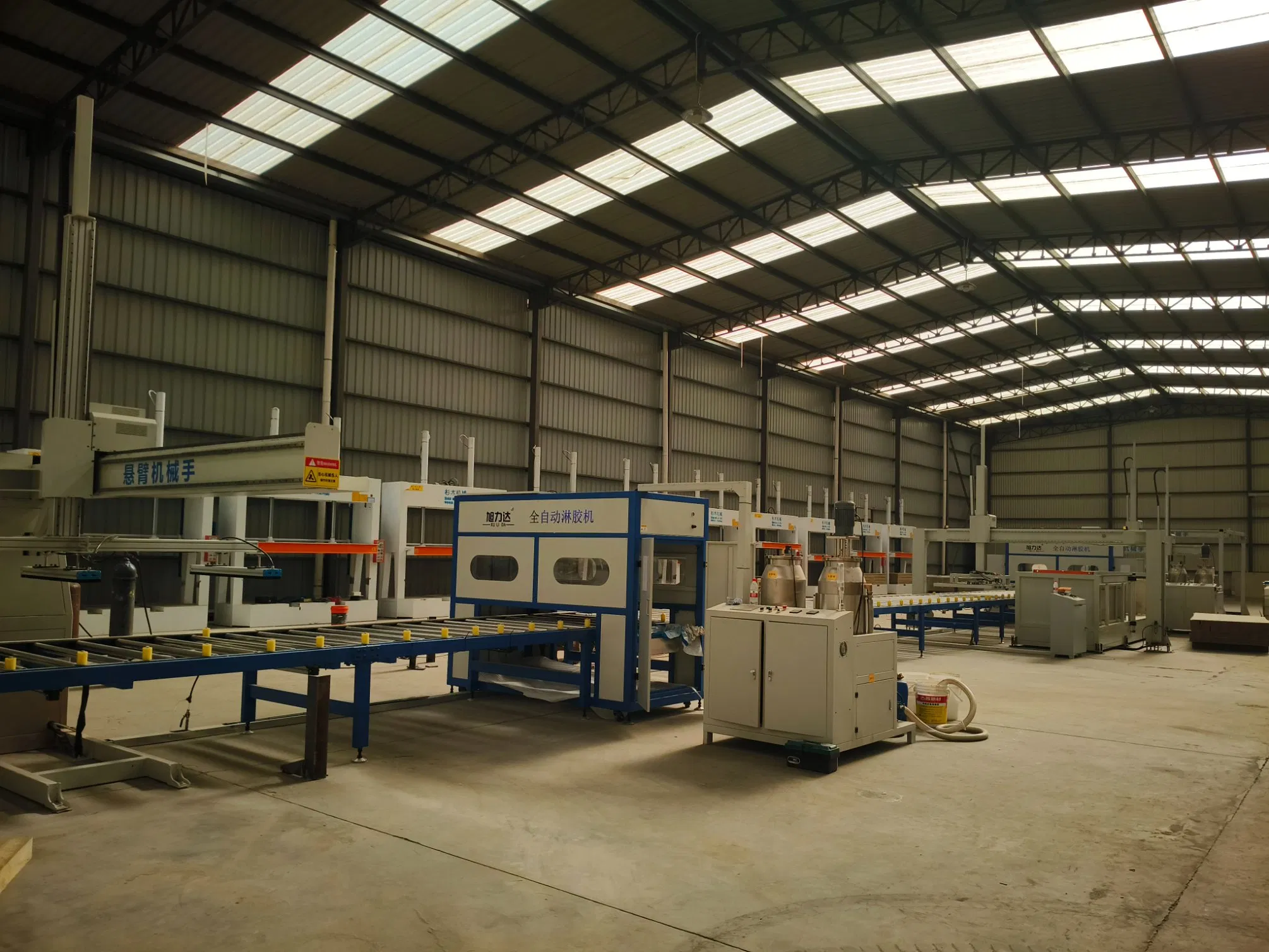

Model 1325 Integrated Board Glue Spreading Composite Product Line

Cost Control: Mix-and-use glue spraying mode allows precise setting of glue amounts, reducing waste compared to manual scraping.

Production Efficiency: High output—lamination of about 3,600 square meters of double-sided panels with only 3 operators.

Labor Saving: Replaces the traditional process requiring over 10 people, significantly lowering manual labor intensity.

Quality Assurance: Standardized automation ensures even glue distribution, eliminating inconsistency found in manual production.

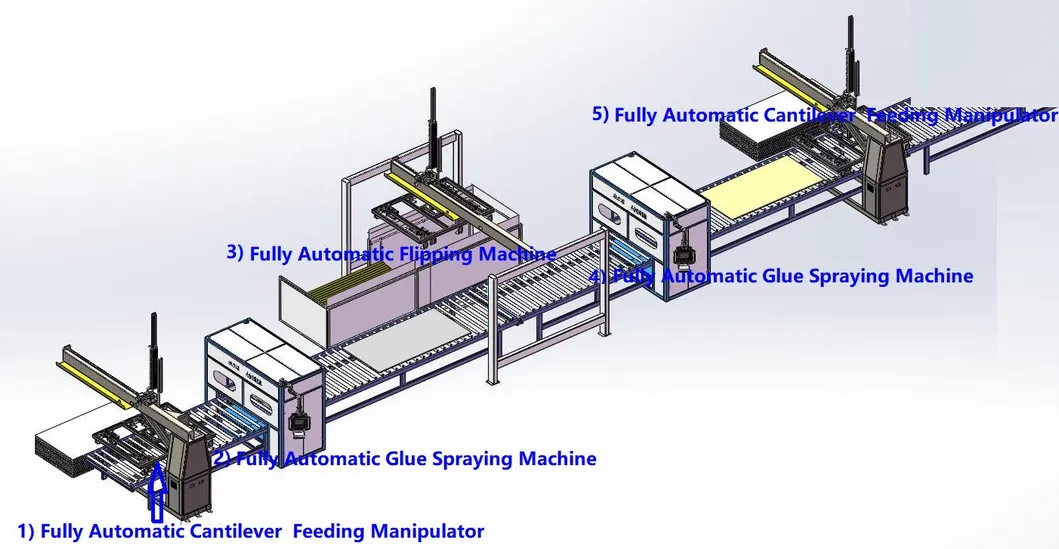

⚙️ Production Process

Automatic Loading: Sheets are loaded via cantilever feeding machine into the glue spraying unit.
Rock Wool Compounding: Automatic compounding station for 1220*2440mm rock wool panels.
Secondary Gluing: Plates enter the second station for final adhesive application.
Lamination & Palletizing: Cantilever lamination machine completes the upper panel before automatic unloading.

📋 Product Parameters

Equipment Model	Model 1300 / 1600 / 2000	Power Supply	380V 50Hz
Glue Output	0-6000g/min	Air Source	0.6 - 0.8Mpa
Flow Accuracy	≤ ± 3%	Equipment Power	10kw
Conveying Speed	Up to 12m/min (Adjustable)	Glue Viscosity	≤ 30000 mpa.s

🛠️ Applicable Products

Integrated CeilingCopper Honeycomb PanelShelter Board WallboardCeramic Integrated BoardMedical Door Stainless Steel CabinetsRefrigerated Truck PanelsMgO Panels FRP Honeycomb PanelRock Wool Sandwich PanelMotor Home Aluminum Foam CoreFire-proof DoorSPC Honeycomb

💡 Equipment Functions

High-temperature powder coating for frame durability.
Stainless steel rollers for long-term rust prevention.
User-friendly touch screen interface with fault alarm system.
Acrylic observation windows for real-time coating monitoring.
Aviation-grade aluminum coating head with anti-stick surface.
Precision metering pumps driven by high-end servo motors.
Remote troubleshooting capabilities via network integration.
Digital glue mixing system for precise ratio control.
Anti-deviation conveyor structure for accurate positioning.

⭐ Our Advantages

Professional online support with 24-hour response time.

OEM & ODM customization for design, logos, and packaging.

Factory-direct pricing without middleman markups.

Strict quality testing and control system for superior performance.

❓ FAQ

Q1: What are your terms of packing for export? A: Generally, we pack goods in containers using standard export plywood boxes. Custom requirements can also be accommodated.

Q2: What is your standard payment term? A: We typically require T/T 30% as a deposit and the remaining 70% before delivery. Photos of products and packages are provided before final payment.

Q3: What is the typical lead time for an order? A: It generally takes 30 to 45 days after receiving the advance payment, depending on the items and order quantity.

Q4: Can you produce machinery based on technical drawings? A: Yes, our engineering team can produce equipment according to your specific samples or technical drawings, including molds and fixtures.

Q5: Do you test the equipment before it is shipped? A: Yes, we perform a 100% functional test on all goods before delivery to ensure stable operation.

Q6: How do you ensure long-term business relationships? A: We maintain high quality and competitive pricing to ensure customer benefits and treat every client as a friend with sincere service.
