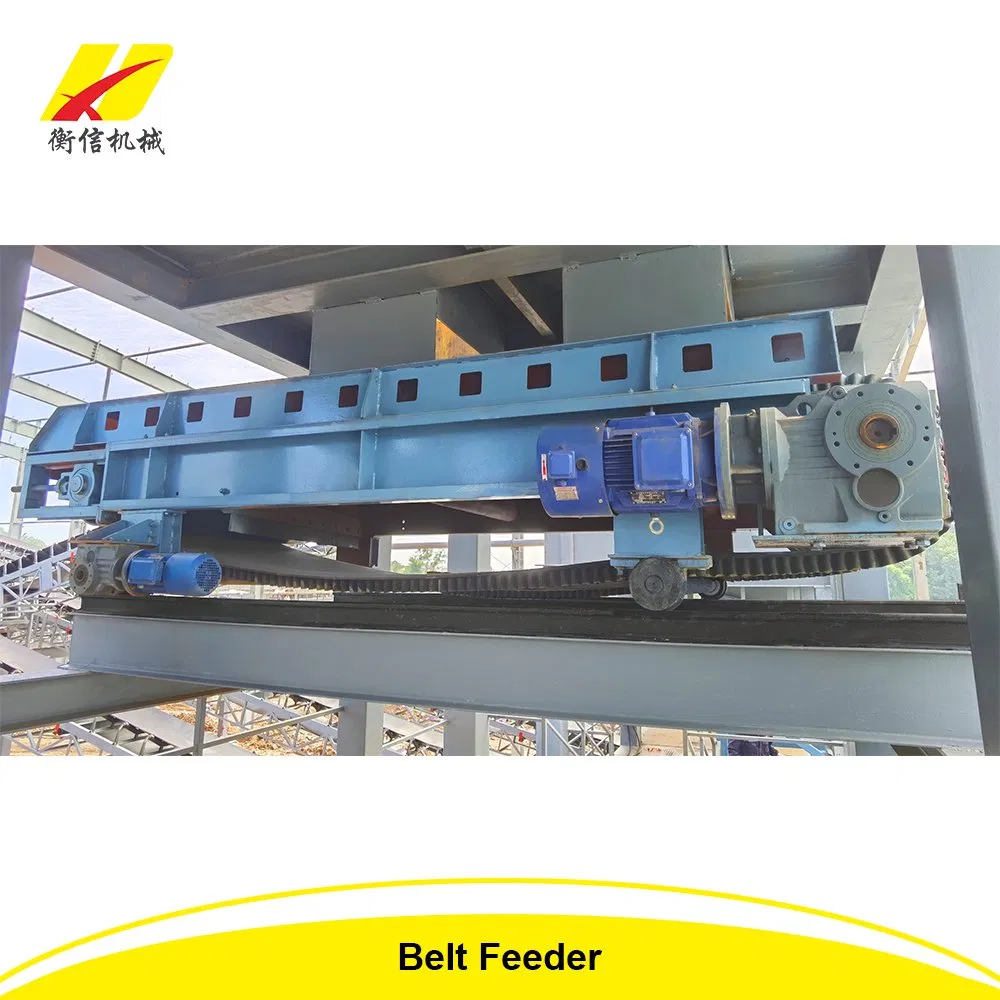

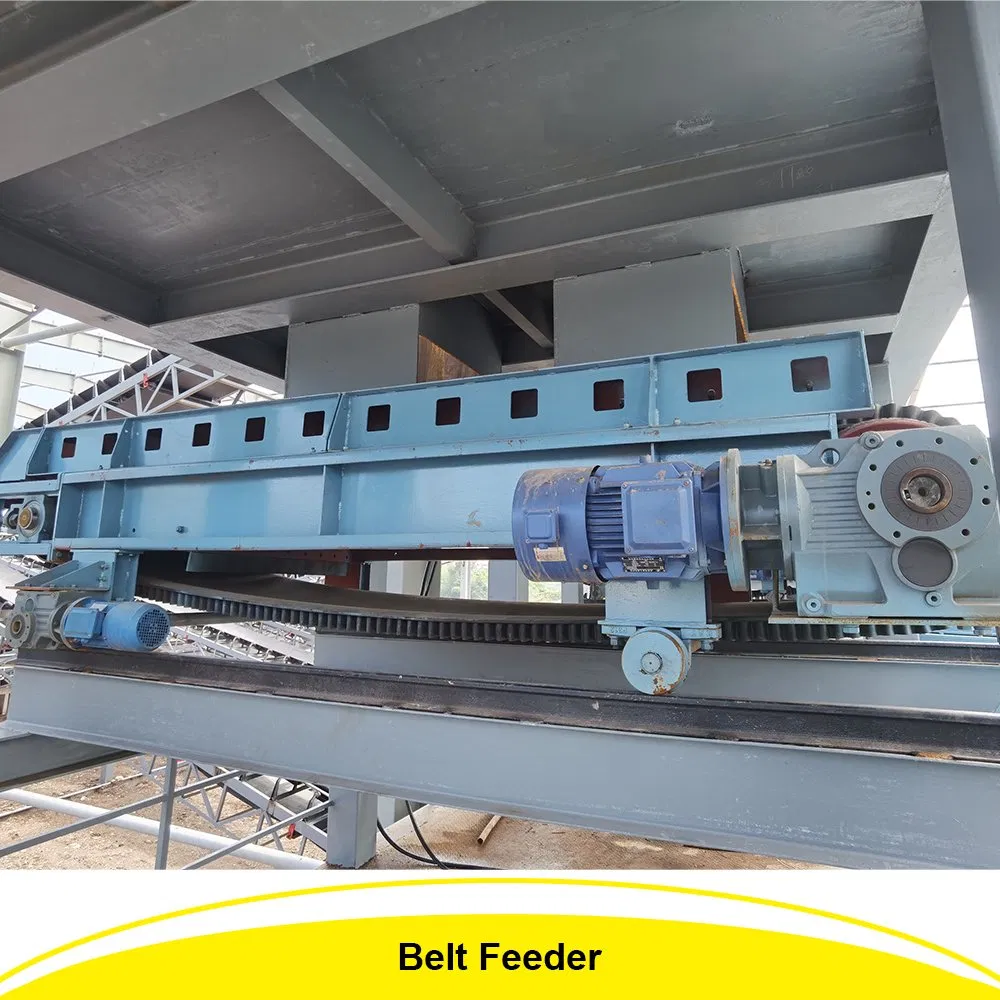

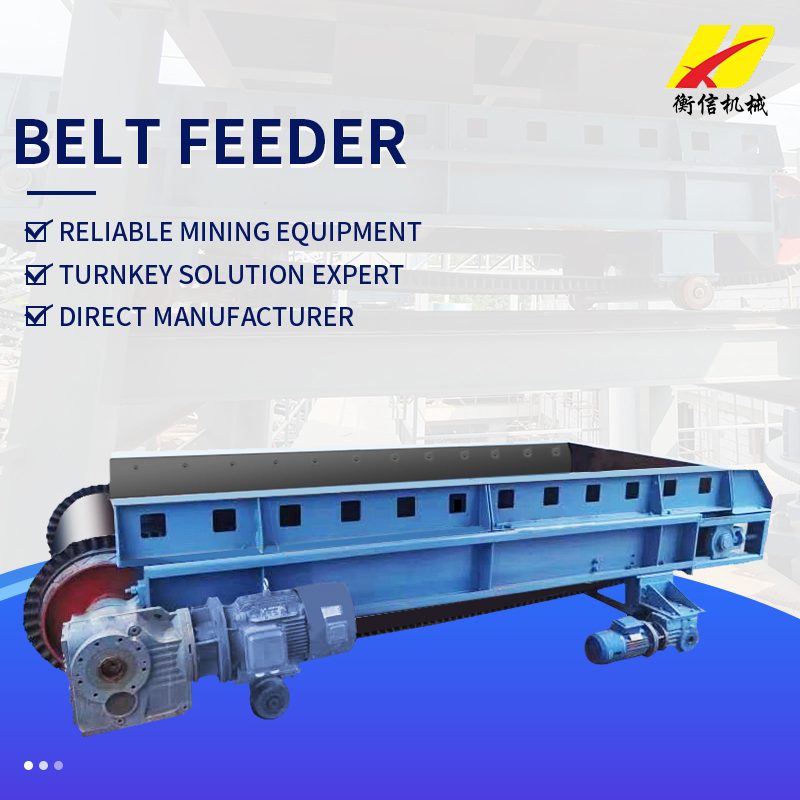

Belt Feeder Mining Feeding Machine for Gold, Copper, Iron, Lead-Zinc, and Nickel Mines
The HXGP series Belt Feeders can withdraw fines or wet materials from hoppers, bins, or stock pipes to accurately and reliably feed the materials to the downstream systems like screens, crushers, and conveyors. They are widely used in mining operations, power generation, and construction applications, as well as in coal, mineral, chemical, and water sector industries.

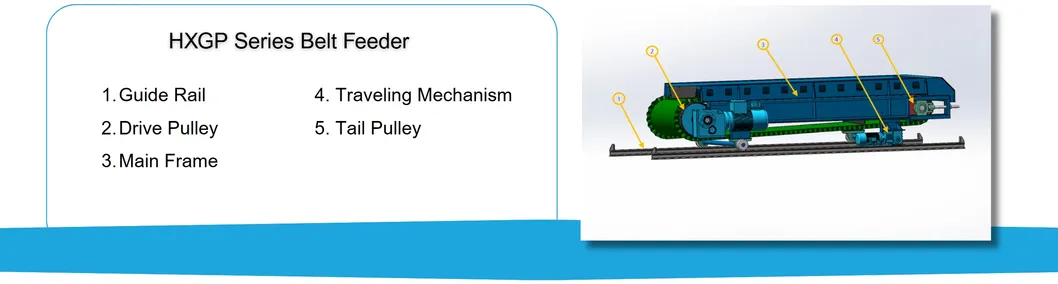

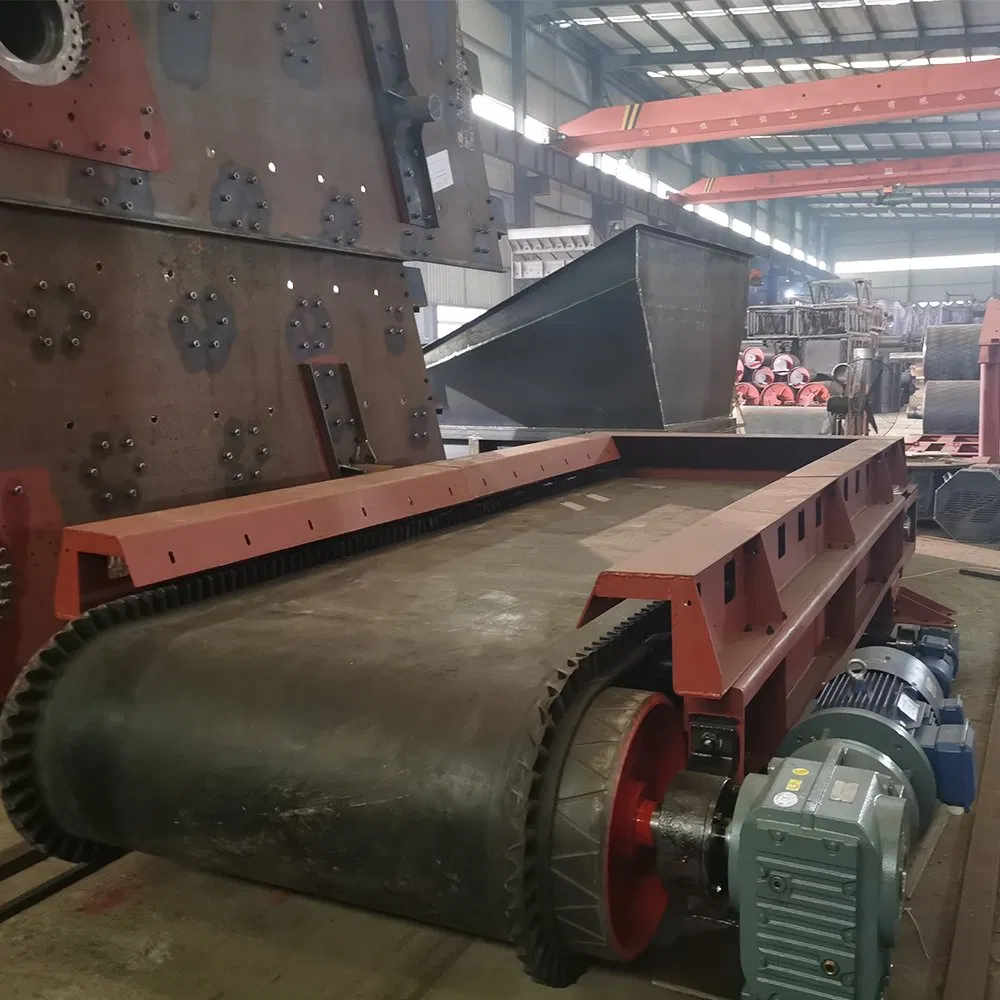

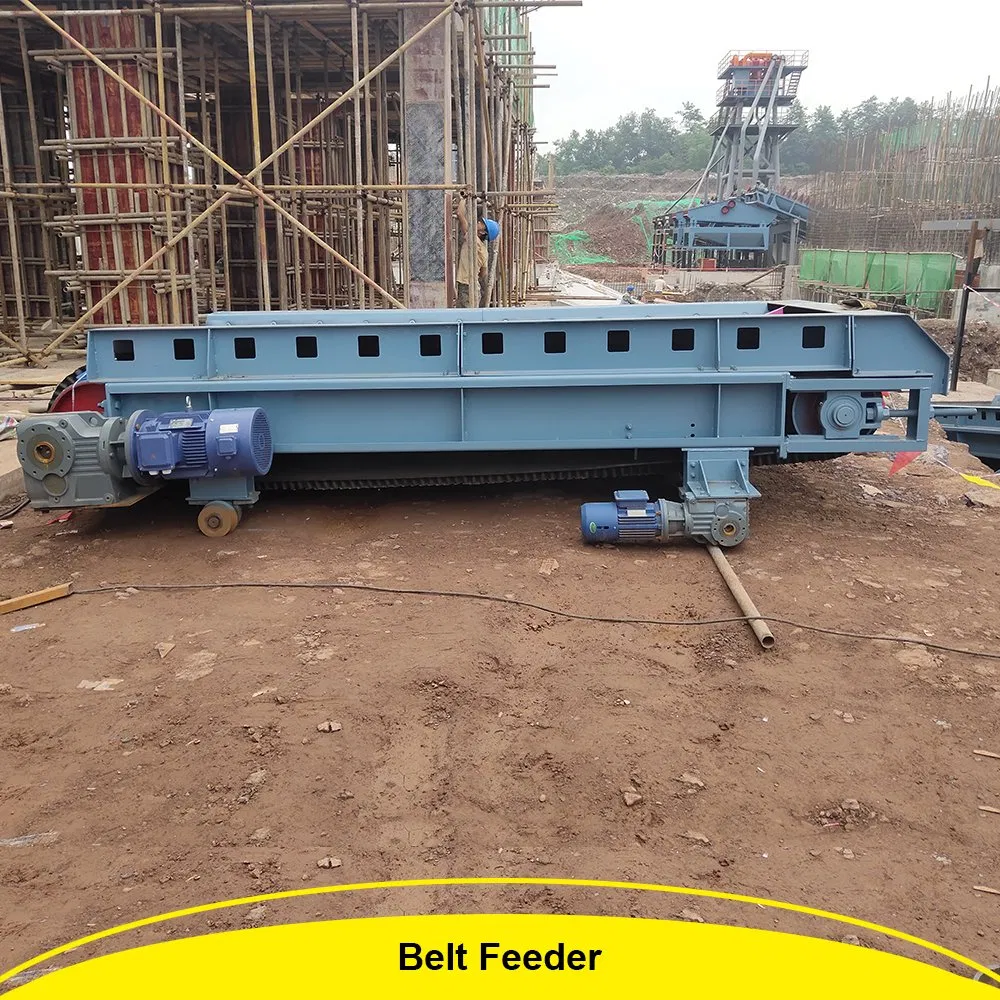

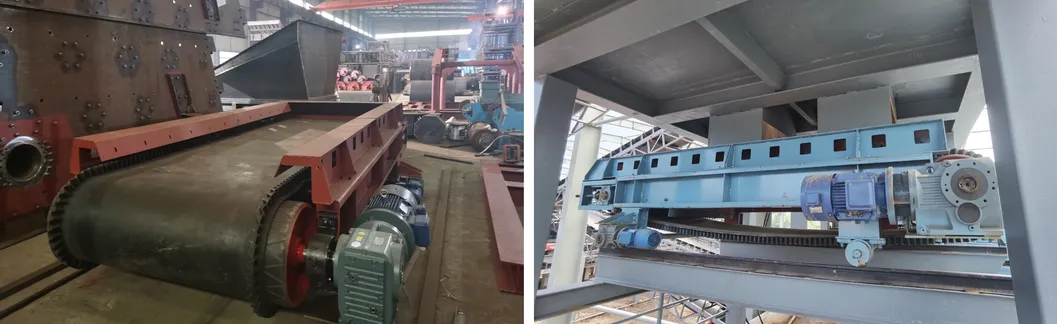

The HXGP series belt feeder delivers material through a controlled process involving a hopper, gate, and a special wear-resistant, anti-tear, impact-resistant, flame-retardant skirted conveyor belt. Bulk material falls from the hopper and gate onto the moving belt. The drive unit powers the belt via a drive pulley, and the belt speed is controlled by a variable frequency motor (VFD), enabling continuous and uniform feeding.

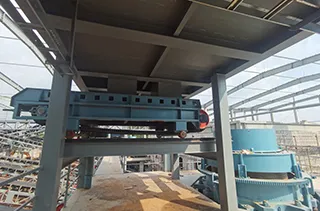

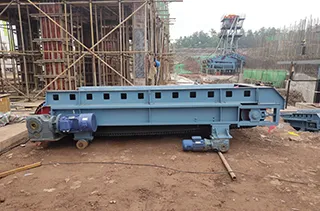

Fitted with wheels for easy transportation, enabling maximum efficiency of your operation.

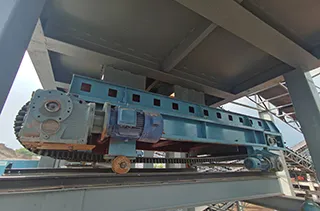

Delivers large volumes with precision, ensuring consistent, even flow with adjustable feed rates.
Engineered with top-brand bearings and gearboxes, guaranteeing long-term reliability.
Robust design operates smoothly with low noise, reducing energy consumption.
Fitted with a protective cover to enhance operational safety.
Conveyor length can be tailored to suit specific site layouts and material handling needs.

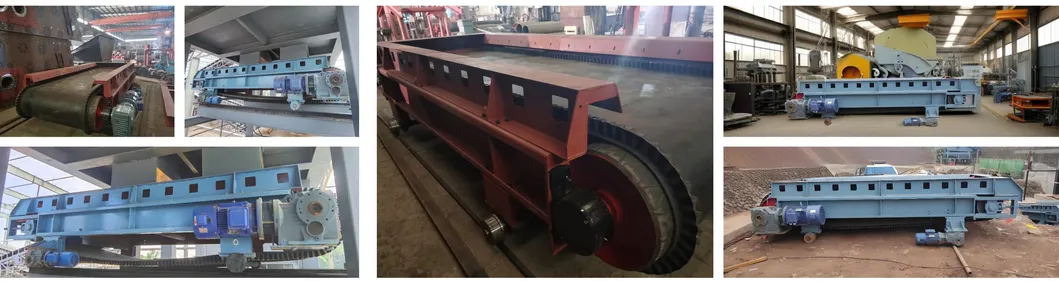

Widely used in industries requiring controlled, continuous feeding from hoppers or silos:
| Model | Conveyor Width (mm) | Feeding Rate (t/h) | Feeding Size (mm) | Power (kw) |
|---|---|---|---|---|
| HXGP0845 | 800 | 150-300 | ≤200 | 7.5+1.5 |
| HXGP1015 | 1000 | 300-500 | ≤200 | 7.5+1.5 |
| HXGP1245 | 1200 | 400-700 | ≤200 | 11+1.5 |
| HXGP1445 | 1400 | 600-1000 | ≤200 | 15+1.5 |
Note: The length of the conveyor can be tailored to meet your specific requirements.
We are a trusted Mining Machinery Manufacturer and System Solution Provider, integrating R&D, design, manufacturing, sales, and after-sales service. We specialize in Integrated System Solutions, Turnkey Services, and EPC Services for sand and aggregate production.
Backed by advanced technology and strict quality control, we have grown into a key player in the mining equipment industry. Our products are reliable and cost-efficient, widely used in infrastructure projects globally.

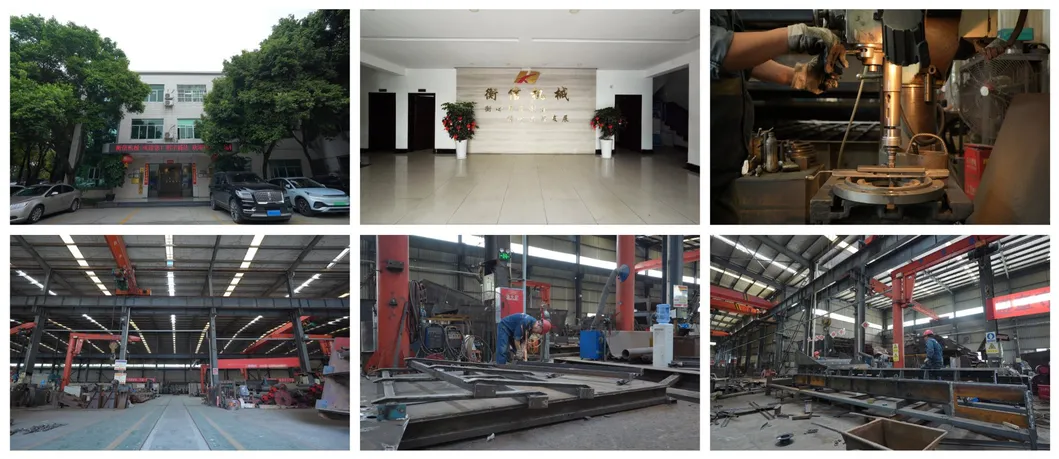

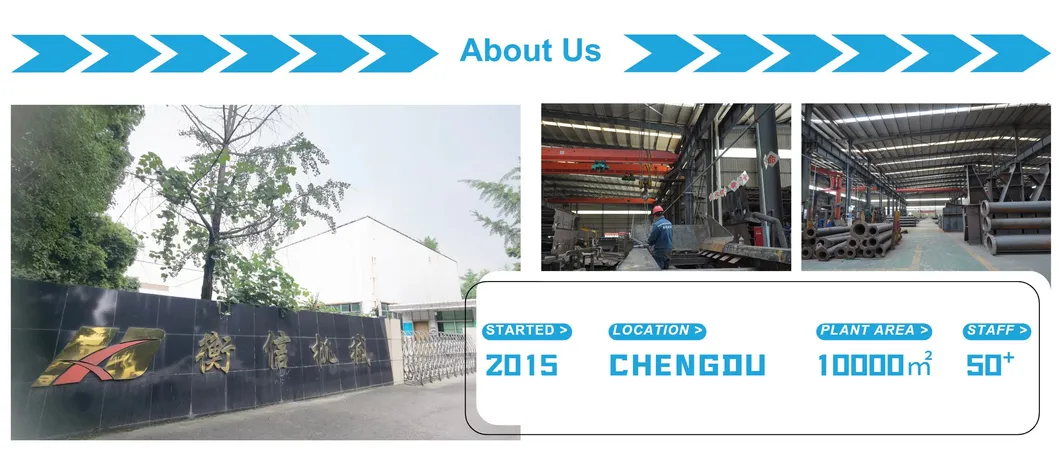

Occupying over 10,000 square meters, our standardized workshops are equipped with advanced production facilities. We have accumulated extensive knowledge in equipment performance, operation, and maintenance, expanding our market through robust R&D and dedicated customer service.
We are a specialized factory established in 2015, focusing on mining machinery.
Lead time is 7-10 days for items in stock and 20-30 days for mass production. Exact timelines are confirmed during ordering.
We typically accept T/T. Our standard terms are a 50% deposit and 50% balance before delivery.
We provide a one-year warranty from the date of delivery. Spare parts are available at cost price.
Yes. We provide customized, turnkey, or EPC solutions to set up complete production lines tailored to your requirements.
We use heavy-duty wooden pallets and protective wrapping to ensure the equipment reaches your site safely.
