100mm Cheap Puf Sandwich Ceiling Panel/Cladding System for Sale

1 / 5

100mm Cheap Puf Sandwich Ceiling Panel/Cladding System for Sale

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

950/1150

Certification

ISO9001

Customized

Non-Customized

Model Type

930-1120

Effective Width

930-1120mm

Length

Max 5.9m (20GP); 11.9m (40GP/HQ)

Steel Thickness

0.4-0.7mm

PU Thickness

30mm to 250mm

PU Density

38-45 Kg/M2

Color

White Grey, Beige, Sea Blue, or Customized

Usage

Wall Decoration of Steel Buildings

Thermal Conductivity

0.018-0.023 W/(M.K)

HS Code

72104900

Production Capacity

100,000 SQM Per Month

Product Description

Polyurethane sandwich panels are composed of 2 layers of PPGI steel sheet, or aluminum sheet, and a core polyurethane foam insulation material. This system is suitable for various roofs and walls in large-scale factory buildings, workshops, warehouses, exhibition halls, gymnasiums, and freezing stores.

Product Component	PU Sandwich Panel
Effective Width	930-1150mm
Available Length	20FT: <5.95m \| 40FT: <11.95m
Core Thickness	50/60/75/100/150/200mm
Core Density	38-42KG/M³ for PU; 80-150KG/M³ for Rockwool
Steel Sheet Thickness	0.40-0.75mm
Stainless Steel Thickness	0.40-0.70mm
Surface Material	PPGI/ PPGL/ Aluminum/ Al-Mg-Mn Alloy
Coating Choice	PE/PVDF/HDP/SMP
Panel Color	As per RAL Standard

Key Advantages

Multipurpose Function: Provides insulation, waterproofing, sound insulation, and vibration resistance simultaneously.

Superior Insulation: Features the lowest thermal conductivity (≤ 0.024) among building materials, offering double the thermal resistance of EPS foam.

Ideal Impermeability: Continuous dense skin and high-strength interconnection walls ensure a seamless, waterproof insulation layer.

High Performance: Excellent self-adhesive properties, anti-wind pressure performance, and mechanized construction for uniform quality and fast cycles.

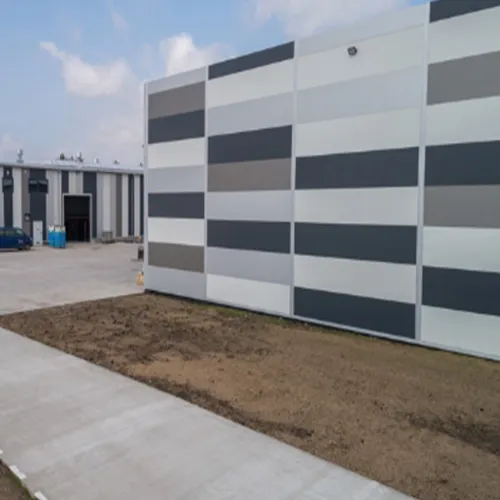

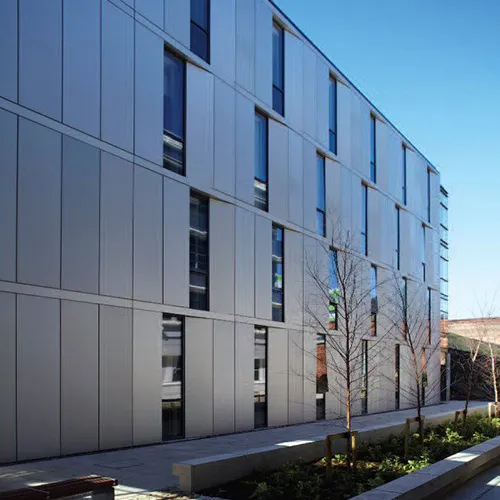

Wall Sandwich Panels Application

✔ External wall panels for container houses, storage rooms, and steel sheds.
✔ Partition wall panels for large steel warehouses, factories, and residential houses.
✔ Ceiling panels for office buildings, residential houses, and steel warehouses.

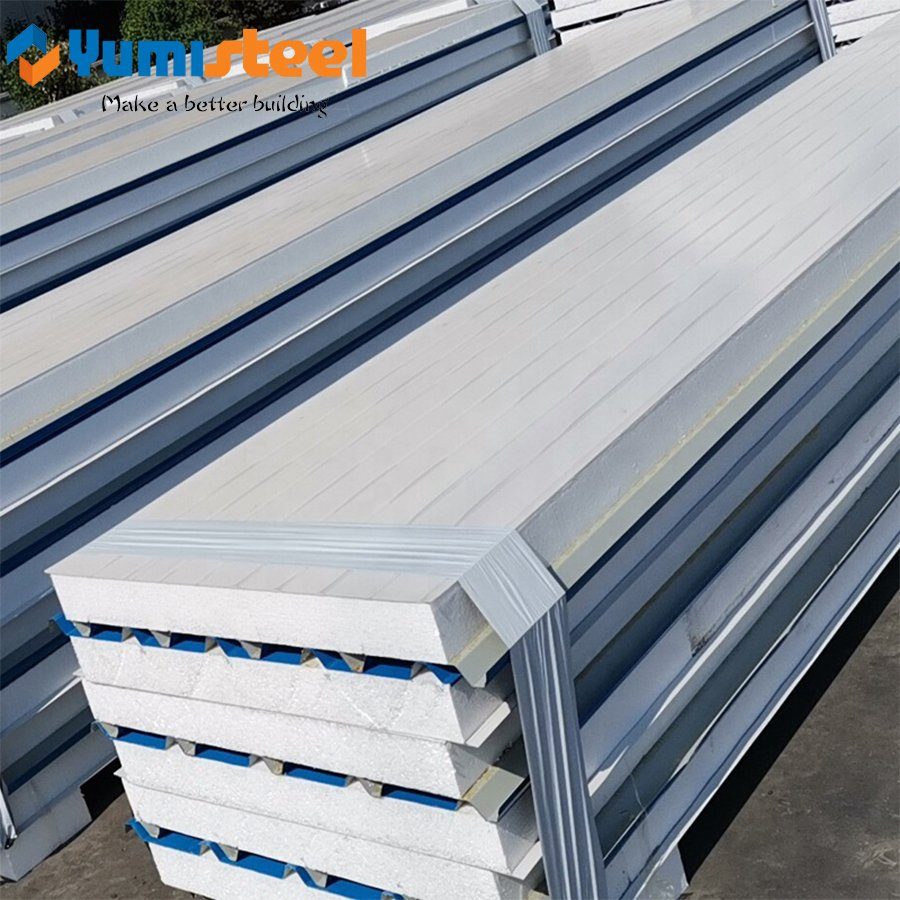

Panel Packaging

All sandwich panels are packed in bundles according to container height (approx. 1 - 1.2 meters per bundle). Each bundle features a sealing end to protect the panel edges. We provide container unloading solutions to ensure safe handling.

Service & Support

Installation Instructions: Tailored instructions offered for each unique project requirement.

Technical Support: On-site guidance available for specialized installation requirements.

Unloading Guidance: Professional solutions for container unloading challenges.

Full Technical Data: Comprehensive engineering information provided upon request.

Frequently Asked Questions

Q1: What are the main components of your PU sandwich panels? Our panels consist of two layers of surface sheets (PPGI, PPGL, or Aluminum) with a high-density polyurethane (PU) foam core for superior insulation.

Q2: What is the thermal conductivity of the polyurethane core? The thermal conductivity ranges between 0.018 and 0.023 W/(M.K), making it one of the most efficient insulation materials available today.

Q3: Can the panels be used for both walls and roofs? Yes, they are highly versatile and suitable for external walls, internal partitions, and ceiling systems in various industrial and residential buildings.

Q4: What are the maximum lengths available for shipping? For 20GP containers, the maximum length is 5.9 meters. For 40GP/HQ containers, we can provide lengths up to 11.9 meters.

Q5: Are the panels fire-resistant? Polyurethane panels offer good fire performance; however, for specific high-fire-rating requirements, we also offer Rockwool core options with densities up to 150KG/M³.

Q6: What colors are available for the steel sheets? Standard colors include White Grey, Beige, and Sea Blue. We can also provide customized colors based on the RAL color chart.
